Descriere

Cu un pret sensibil mai bun, va prezentam noul model THINKTOOL EURO EXPERT 394 cu ecran de 12 inci este dispozitivul emblematic al companiei Thinkcar din linia profesională de diagnosticare Thinktool si ofera 2 ani update online. Acest model oferă suport pentru tehnologia AI. Acest aparat detinat doar uzului profesional in segmentul service auto se aduce la comanda si necesita un avans de 30% la data comenzii. Dupa activare si instalare, nu poate face obiectul returului in mod gratuit !

Equipped with a customized TCOS system, the THINKTOOL Euro 394 supports dual RTC diagnostics and a dual VCI screen function. The device enables diagnostics for alternatively powered vehicles (including electric and hybrid) and offers optional diagnostic functions for commercial vehicles, covering 98% of models available on the market. Additionally, it integrates 41 specific service functions, ensuring high performance and a wide range of applications.

The device supports the latest diagnostic protocols: CAN 2.0, CAN FD, DoIP, as well as J2534 (Pass Thru) and RP1210. It is a universal head designed for passenger cars (up to 3.5 T), heavy goods vehicles, and electric vehicles.

J2534 (Pass Thru) protocol enables online programming, controller updates and module addition via A.S.O. software, after prior account registration with the manufacturer of a given vehicle brand.

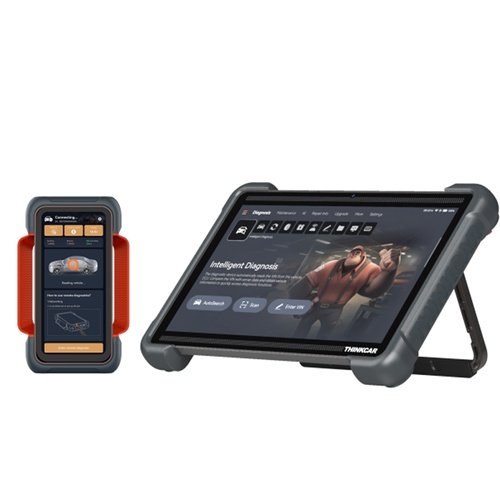

Set includes the latest VCI THINKLINK PRO diagnostic head, which is equipped with a 6.54-inch high-brightness IPS touch screen and 1GB RAM and 8GB ROM.

KEY FEATURES OF THINKTOOL EURO EXPERT 394:

• Personalized TCOS system with a new user interface, designed for more intuitive and engaging operation, provides a preview of current parameters (live data),

• Offers a complete scan of all vehicle systems and modules,

• Enables coding and programming of control units,

• Programming and coding modules in selected brands,

• Adaptations, modifications and personalization of settings,

• Support for immobilizer functions (IMMO),

• Key programming and coding – basic functions

  *for extended capabilities, additional ProG G3 and T-Key 101 kit required,

• It has been equipped with EV diagnostic software and optionally  with the THINKCAR EV package

  *for extended Thinkcar EV package the purchase of EV KIT and EV connectors required,



• THINKCAR AI diagnostic features that enrich the diagnostic experience and increase work efficiency.

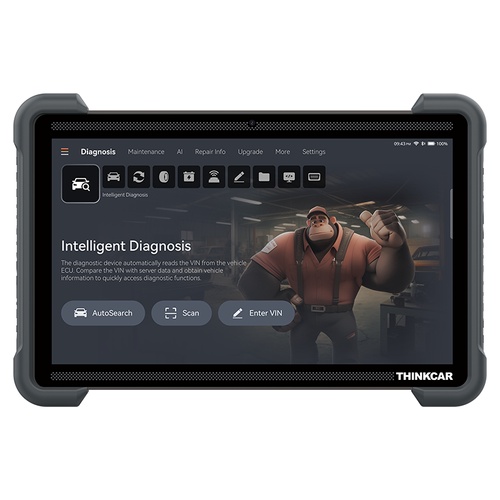

Completely refreshed industrial tablet design in a splash- and drop-resistant armored casing. The THINKTOOL EURO EXPERT 394 from Thinkcar stands out from the competition thanks to its modern design, wide range of features, and extensive vehicle coverage.

High-capacity 12,600 mAh lithium-polymer battery ensures long, efficient operation without the need for frequent recharging. The device is equipped with a powerful octa-core processor, 8GB of RAM and 256GB of ROM, as well as a 13MP rear camera and a 5MP front camera.

Optionally, the diagnoscope can be expanded with additional modules: Printer, Endoscopic camera, Battery tester, Prog G3 Programmer, Oscilloscope, THINK TPMS G2, T KEY 101 Key Programmer.

Serie
thinkcar
Distanța dintre camere
13 Mpx
Cameră frontală
5 Mpx
Limbi acceptate:
Poloneză, engleză, franceză, germană, italiană, spaniolă, portugheză, rusă, turcă, olandeză, maghiară.
Bluetooth
5.0.
Chitanțe
Wi-Fi, WLAN 802.11 b/g/n.
Baterie
12600 mAh 3.7 V
Ecran:
12"
Hard disk
256 GB
RAM
8 GB
Procesor
Procesor octa-core de 2.2 GHz
Sistem de operare
Android 13
Actualizări
2 ani de actualizări de software gratuite de la data activării.

What’s New?

The THINKTOOL Expert 394 is a brand new 12-inch AI diagnostic device developed by THINKCAR in 2024, which features with unique designed, optimized UI interface and powerful TCOS system. The 394 supports split screen to show the data, modules etc, which are capable of diagnosing passenger vehicles, electric vehicles, commercial vehicles, which is an idea choice for mechanics and advanced workshop.

OE-Level Diagnostics

including full system diagnostics, special function, actuation test, bi-directional control, advanced coding, online programming etc.

Newly released AI diagnostics

with optimized user experience, the pad can fast and easily follow command.

TCOS system

Advanced TCOS system with brand new UI interface for optimized user experience.

VCI Display

The VCI data can be synchronized in the device in real-time.

Brand new industrial design

11.5mm with

which is lightweight, robust, and durable with a thickness of 11.5mm

1.2M

which passed the 1.2M dropping test.

2-Years free update

2-Years free update for passenger software and EV software including EV Tesla Software. The HD software need to pay with T-code though local authorized distributors

48 maintenance

Advanced TCOS system with brand new UI interface for optimized user experience.

Support Video Remote Diagnostics.

Superior hardware

12-inch HD IPS touch screen, 256G storage, 13MP Rear Camera, 5MP Front camera.

13MP

Rear Camera

12-inch

HD IPS touch screen

256G

Storage

5MP

Front camera

Additional Services

Which support ADAS calibration services, comprehensive TPMS services, and key programming services.

ADAS calibration

Remarks: The ADAS is sold seperately.

TPMS

Remarks: The TPMS programmer is sold seperately.

Key programming

Remarks: The Prog is sold seperately.

Expandable functions (NOT INCLUDED !!!)

Supports battery testing, endoscope, printer, oscilloscope, and other expandable functions.

Battery testing

Endoscope

Printer

Oscilloscope

Specifications

Operating System:

TCOS System

Rom/ Ram:

256G/8G

Battery:

12600mAH/ 3.8V

VCI:

THINKLINK PRO

Screen Size:

12-inch

Passenger Software:

2-Year Free Update for Passenger Software

EV Software:

2-Year Free Update for EV Software ( Including Tesla)
