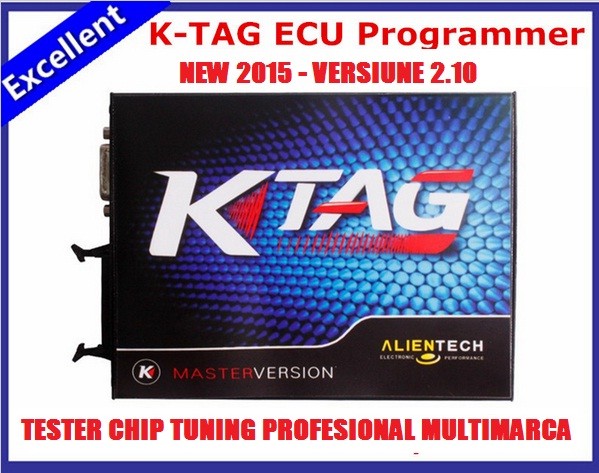

Tester profesional de chip tuning si programare auto K-TAG ECU v2.13/2016

Descriere

K-TAG ECU Programming Tool reprezinta varianta profesionala utilizata cu precadere de multi dintre expertii de chip tuning din lume pentru cele mai bune rezultate la citirea si scrierea hartilor auto si efectuarii remaparii in conditii excelente prin maximizarea securizarii transmisiei datelor necesare.

Lista de autovehicule suportate de K-TAG ECU poate fi descarcata de la linkul de mai jos:

DOWNLOAD LISTA AUTOVEHICULE ACOPERITE K-TAG ECU

Software Version: V2.10/V2.13
Hardware Version: V5.001


Note: Please don't try to update the KTAG, it will damage the tool and can not use any more.

Disconnect your computer internet when using it!


Languages : 6 Kinds

Italian/Deutsch/English/French/Portuguese/Spanish


KTAG Description:

The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices.Using only the essential components, Alientech have merged J-Tag,for  Motorola BDM/Nexus and Bootloader for Mitsubishi/Infineon Tricore/ST communication lines into a single product.

K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.


Cables From Left to Right:

1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H



Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave version. This way, Slave user can rely on the larger network of Master in the chiptuning field.The only thing that K-TAG does not do: OBD Communication. But for that you can count on KESSv2.To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide range of special adapters, to be soldered on the ECU or to be used on he positioning frame.



Fllowing details of the accessories available in car list catalog per each group of protocols of communication


  BDM for Motorola MPC5XX
 14AS00T01S: Adapter to be soldered to the ECU
 14AS00T02S: Cable with connector to be soldered to the ECU
 14AS00T03S: Adapter to be soldered to the ECU
 14AS00T04S: Adapter to be soldered to the ECU
 14AM00T00M: Board for connection through positioning frame
 14AM00T01M: Board for connection through positioning frame
 14AM00T02M: Board for connection through positioning frame
 14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
 14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
 14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03


 J-TAG Nexus MPC5xx
 14AS00T05S: Adapter to be soldered to the ECU
 14AM00T05M: Board for connection through positioning frame
 14AM00T06M: Board for connection through positioning frame

 J-TAG RENESAS SH705xx
 14AM00T07M: Write Board for connection through positioning frame
 14AM00T08M: Write Board for connection through positioning frame
 14AM00T09M: Write Board for connection through positioning frame
 14AM00T10M: Read Board for connection through positioning frame
 14AM00T11M: Read Board for connection through positioning frame

  BOOTLOADER INFINEON TRICORE
 14P600KT04: Board for connection through positioning frame

 BOOTLOADER ST10
 14AM00T03M: Board for connection through positioning frame

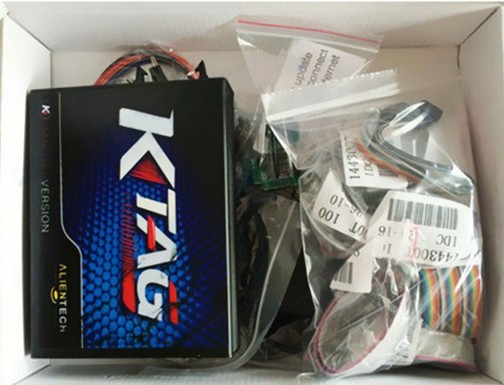

Package List:

1 x KTAG Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter
1 x CD
1 x Carton Box Outside
