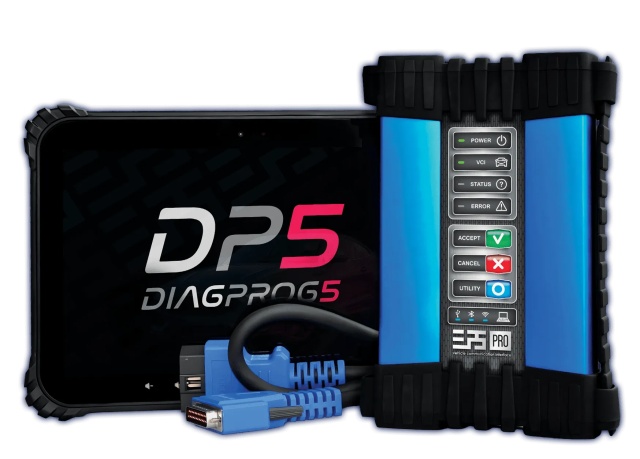

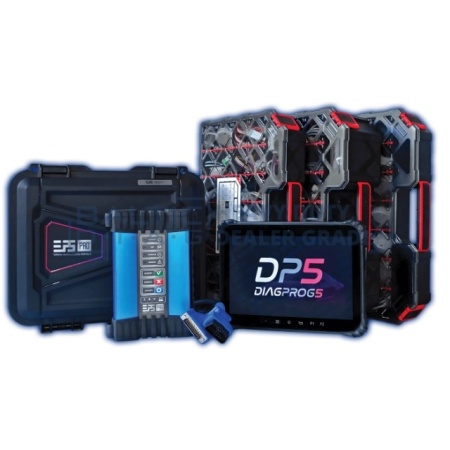

ELP5 PRO – VCI is a state-of-the-art interface made to link a host PC/Android based device with a vehicle’s diagnostic connector.
The ELP5 PRO – VCI enables fast, reliable diagnostics, flashing, and complex programming.
It offers two modes: Pass-Thru for vehicle programming or standalone operation with DiagProg® software. With three CAN channels, UART, J1850, and flexible configuration, it supports a wide range of communication protocols for maximum compatibility.
The ELP5 PRO – VCI is equipped with top-tier hardware, making it a robust, efficient, and user-friendly tool for automotive professionals.
Modes of operations
Mode 1 – Pass-Thru interface device supporting standards:
- J2534-1 Pass-Thru Vehicle Programming API
- J2534-2 Optional Pass-Thru Features API (partial)

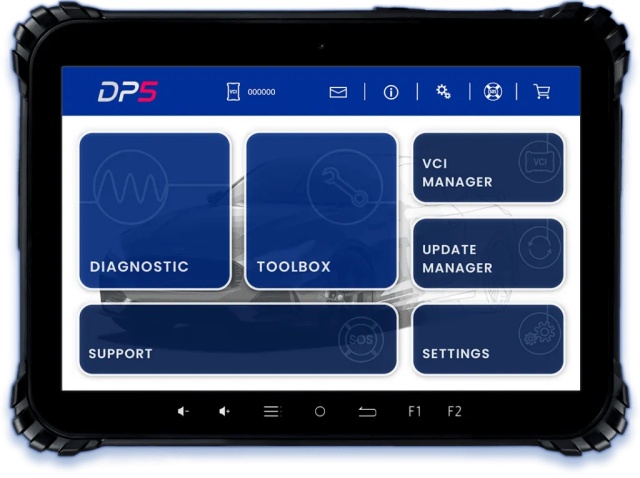

Mode 2 – Stand-alone device controlled by DiagProg® software running on an Android-based host
Interface protocols
- ISO 11898 – CAN-FD 5Mbps
- ISO 11898-3 – Fault Tolerant CAN
- ISO 15765 – Diagnostics on CAN
- ISO 13400 – DoIP
- ISO 14230 – KWP2000
- ISO 14229 – UDS
- ISO 9141 – K & L Lines
- SAE J2411 – Single Wire CAN
- SAE J2818 – KWP1281
- SAE J2819 – TP2.0
- SAE J2284 – High-Speed CAN
- SAE J2740 – GM UART
- SAE J1850 – VPW/PWM
- SAE J2610 – Chrysler SCI
- SAE J2809 – Honda DIAG-H
- Chrysler CCD
Hardware Interface
- CAN – 3 independent channels
- UART – 3 independent serial communication channels
- J1850 – 1 channel
- Slot for Expansion Board for future/custom standards
- Nearly unlimited configuration options support
Custom System Interface
- 9x Programmable Multifunction Input / Output / Bidirectional pins
- Pull-ups, pull-downs, „open-drain”, Schmitt trigger options
- SPI, UART, I2C, 1-Wire, JTAG, BDM, High Speed Clock
HOST Interface
- 802.11 a/b/g/n/ac WiFi 2.4/5GHz
- Bluetooth 4.2 EDR
- USB 2.0 Hi-Speed
(USB-C connector) - WiFi Direct
Technical data
