Tester auto detectie scurgere fum turisme si camioane LUTIFIX

Description

Acest aparat LUTIFIX se regaseste in doua variante MOT233-10 si MOT233-11 (controler gradat cantitate fum in plus) si poate fi utilizat cu ulei pentru bebeluși sau glicerină pentru îngrijirea pielii sau cu glicerină industrială, uleiul de fum selectat trebuie să fie lichid pur, non-apos și în stare fluidă. Nu folosiți ulei de fum vâscos care poate deteriora cu ușurință echipamentul. Folosiți o sticlă gradata atunci când adăugați ulei in aparat. Dacă este supraîncărcat, deschideți evacuarea uleiului pentru a scurge o cantitate corespunzătoare de ulei .

LUTIFIX automobile smoke leak detector is a professional automobile pipeline leak detection tool. The diagnostic leak detector can use the visible smoke system in any sealing system to quickly locate leaks that are difficult to find, helping technicians to quickly solve problems.

★EVAP SYSTEM SUPPORTED

Comes with EVAP adapters, updated SDT-205 can help you apply with EVAP System of all vehicles to quickly find out the leak parts. 4ft Smoke Outlet Pipe can help reach and connect perfectly.

Powerful Function

The LUTIFIX Smoke Leak Detector is designed for pipeline leak detection in automotive air intake system, fuel system and cooling system. such as fuel pipe, air intake system, Exhaust system, EVAP system, Turbocharger, Charge air and cooling tank.

Upgrade function

1. Air pressure and smoke switch button

2. Precision pressure gauge

Easy operation

Connect the positive and negative poles of the power cord to the positive and negative poles of the car battery, a lot of smoke will be emitted within 30 seconds after turning on the power

Technical indicators and working environment:

Power supply: DC12V±2

Output pressure: 15psi, ≈1kg/c㎡

Output smoke: 1-6L/min

Dimensions: 350x235x300mm

Whole machine weight: 5.5kgs

Ambient temperature: -10℃~+40℃

Relative humidity: <85%

Open flames are strictly prohibited within 2m

Cautions:

1.When you use this detector the first time, please fill 20ml oil, not beyond this range.

2.New oil can be filled with only when the smoke is light,and it can't be filled over 15 ml every time.

3.Before filling new oil, please pour out the remaining oil in the detector.

4.Please replace the detector oil regularly.

5.Fit for: cars,trucks ,vans, motorcycles

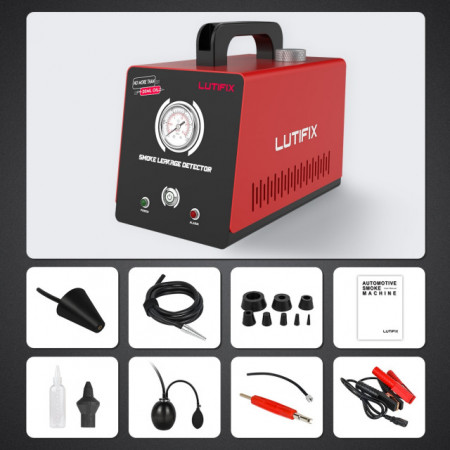

Packing list :

Host: ×1

Smoke duct: ×1

EVAP tool kit: ×1

Standard cone adapter: ×8

Taper adapter for capping tool: ×1

Inflatable airbag: ×1

Power cord: ×1

Smoke generator filling pot: ×1

Product manual: ×1

Certificate of conformity: ×1
