Ktag Tester profesional de chip tuning si programare auto Master K-tag HW 7.020 SW 2.23

Description

Acest model KTAG MASTER VERSION este de cea mai buna calitate posibila si are ultimul update disponibil => K-TAG ECU Programming Tool reprezinta varianta profesionala utilizata cu precadere de multi dintre expertii de chip tuning din lume pentru cele mai bune rezultate la citirea si scrierea hartilor auto si efectuarii remaparii in conditii excelente prin maximizarea securizarii transmisiei datelor necesare.

Lista de autovehicule suportate de K-TAG ECU poate fi descarcata de la linkul de mai jos:

DOWNLOAD LISTA AUTOVEHICULE ACOPERITE K-TAG ECU

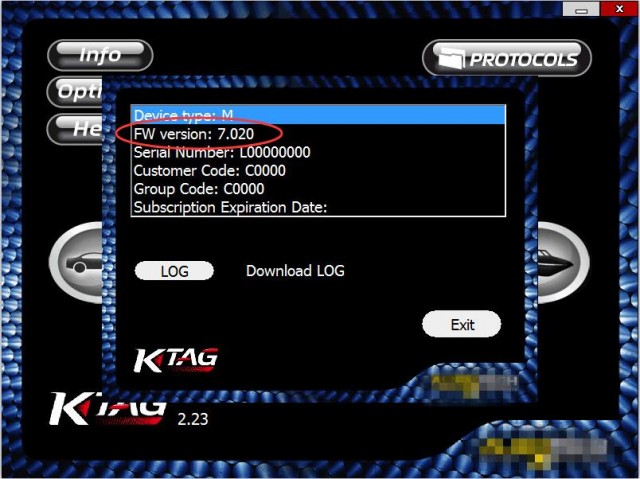

Software Version: V2.23
Hardware Version: 7.020

Note: Please don't try to update the KTAG, it will damage the tool and can not use any more.

Disconnect your computer internet when using it!

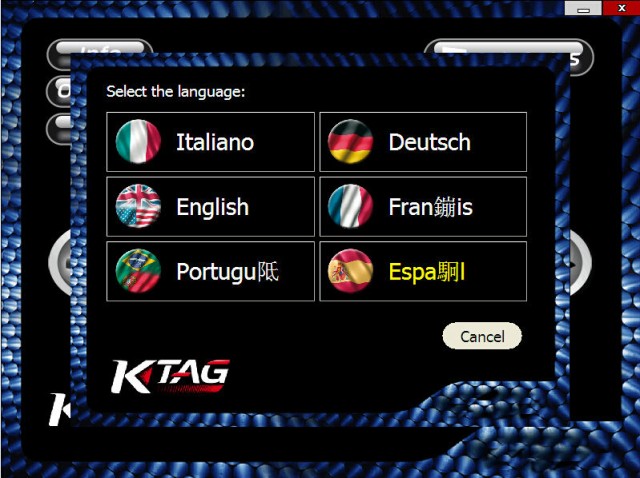

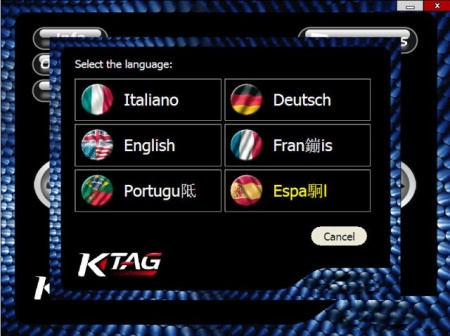

Languages : 6 Kinds

Italian/Deutsch/English/French/Portuguese/Spanish


Top 8 reasons to get KTAG V7.020:
1. Software Version V2.23
Firmware Version V7.020
2. Add ECU Type: for Toyota 76FXXX, PSA 17.4.4, for Ford E83, VW 17.5.5 (1766), for Mercedes-Benz 276ECU,for Toyota 76F, and so on, at least 160 more ECU Types added.
3. No tokens limitation
4. Ktag V7.020 can connect internet without damage
5. Multi-Language: English, Italian, German, French, Portuguese, Spanish
6. Support BDM Function Well, No Checksum Error.
7. It supports universal famous car,truck, tractor,bike.

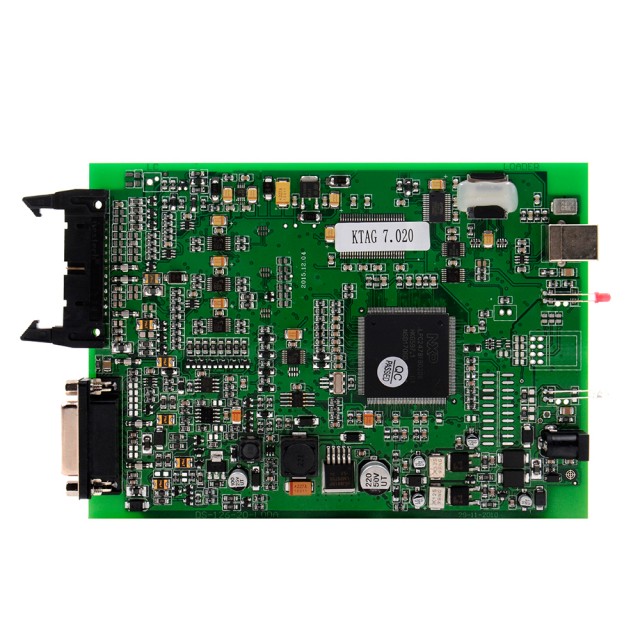

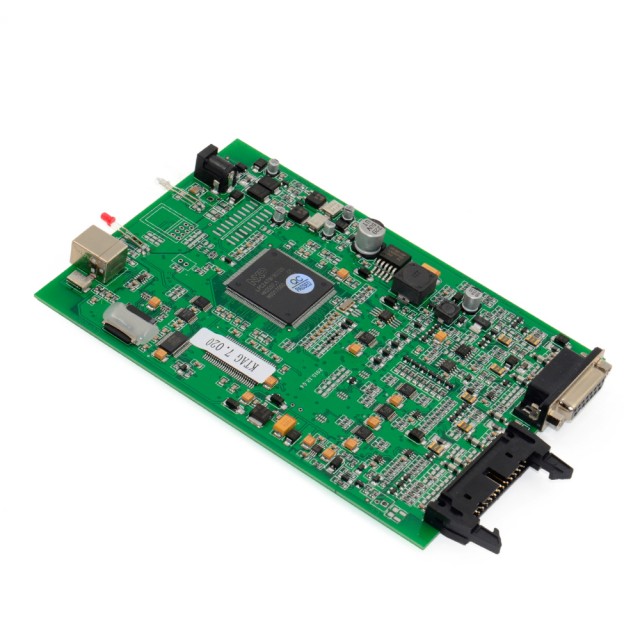

8. Best PCB With Murata filters ( The main program and SD card file is different from ktag v6.070 )

The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, have merged J-Tag, for Motorola BDM/Nexus and Bootloader for Mitsubishi/ST communication lines into a single product.

K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

Just as the full range programmers, K-TAG is available both in Master and Slave version. This way, Slave user can rely on the larger network of Master in the chiptuning field.The only thing that K-TAG does not do: OBD Communication. But for that you can count on KESS v2.

To use K-Tag at best on any kind of Electronic Control Unit, offers you a wide range of special adapters, to be soldered on the ECU or to be used on the positioning frame.

Below is model and ecu list for ktag v7.020 add more 160 types than KTAG V6.70:
TYPE BRAND ECU ECU_TYPE K-TAG
Car for CITROEN DCM3.5 244
Car for FORD DCM3.5 244
Car for Mercedes DCM3.5 248
Car for JEEP DCM3.5 - CRD2 248
Car for FIAT MARELLI 7GF 247
Car for SUZUKI MARELLI 8DS 364
Car for Abarth MARELLI 8GMF 243
Car for Alfa Romeo MARELLI 8GMF 243
Car for FIAT MARELLI 8GMF 243
Car for FIAT MARELLI 8GSF 243
Car for LANCIA MARELLI 8GSF 243
Car for Alfa Romeo MARELLI MJ8DF 303
Car for CITROEN MARELLI MJ8DF 303
Car for FIAT MARELLI MJ8DF 303
Car for LANCIA MARELLI MJ8DF 303
Car for PEUGEOT MARELLI MJ8DF 303
Car for Fiat MARELLI MJ8F3 382
Truck for VOLVO TRUCKS TRW TRW EMS2 246

J-TAG RENESAS SH705x
TYPE BRAND ECU ECU_TYPE K-TAG
Car for CITROEN DCM3.4 257
Car for PEUGEOT DCM3.4 257
Car for DACIA DCM3.4 258
Car for NISSAN DCM3.4 258
Car for RENAULT DCM3.4 258
Car for PEUGEOT DCM3.4 362
Car for SUZUKI DENSO 057L1 370
Car for SUZUKI DENSO 062J0 262
Car for OPEL DENSO 1.7 253
Car for SUZUKI DENSO 79J2 316
Car for SU BA RU DENSO CJ 281
Car for NISSAN DENSO D3 264
Car for RENAULT DENSO D3 264
Car for Su ba ru DENSO DM 375
Car for SU BA RU DENSO DT 276
Car for NISAN DENSO E1x 315
Car for NISAN DENSO H1 294
Car for SU BA RU DENSO KS 275
Car for Mazda Denso N3J1 395
Car for MAZDA DENSO R2AX 263
Car for Mitsubsh DENSO RA6 265
Car for Mitsubsh DENSO RA6 319
Car for Mitsubsh DENSO RA6 324
Car for MAZDA DENSO RF7K 278
Car for MAZDA DENSO RF7X 278
Car for MAZDA DENSO RF8G 277
Car for MAZDA DENSO RF8K 277
Car for Mitsubsh DENSO RHF4 265
Car for MAZDA DENSO ZJ77 344
Car for OPEL DENSO 253
Car for MAZDA DENSO 262
Car for NIS-SAN DENSO 264
Car for OPEL DENSO 295
Car for NISSAN DENSO 314
Car for NISSAN DENSO 315
Car for SUZUKI DENSO 316
Car for MAZDA DENSO 321
Car for OPEL DENSO 322

Truck for HINO DENSO 347
Car for NISSAN HITACHI 296
Car for NISSAN HITACHI 298
Car for NISSAN HITACHI 299
Car for RENAULT SAGE

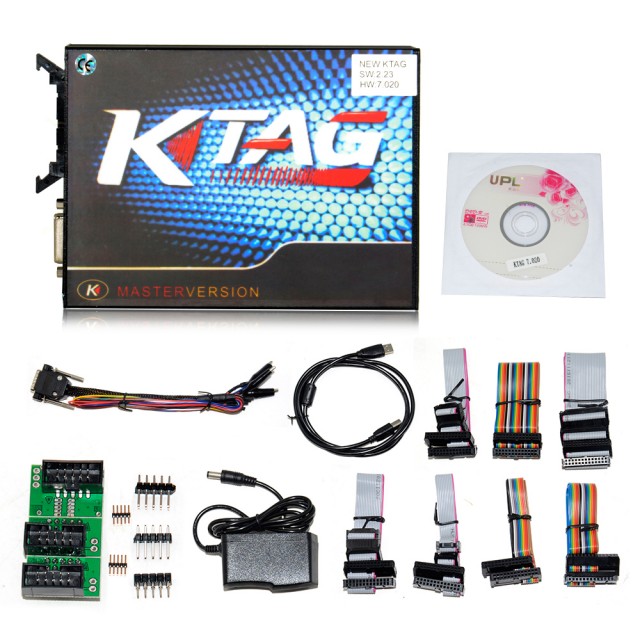

Package List:

1 x KTAG Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter
1 x CD
1 x Carton Box Outside
