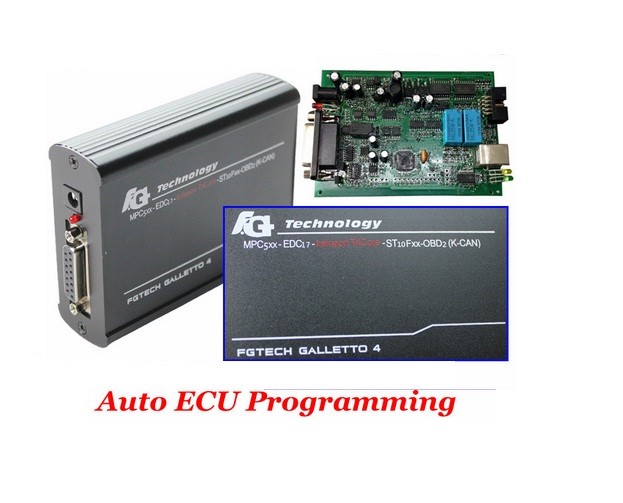

Interfata Chip Tuning FGTech Galletto 4 OBDII ECU Flasher model V54 A+

2014 Latest Version V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function

FG Tech Galletto 4 Master V54 BDM-TriCore-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum. This item cannot only work as FGTech Galletto 2-Master, but can also work for BDM-TriCore-OBD.

V54 FGTech Software Language: Italiano, English, Deutsch, Francais, Espanol, Portugues, Czech, Turkish

FG Tech Galletto 4 Master v54 Features:

1. Computer System:  Support windows XP ONLY, more friendly than Fgtech v53 , much easier to operate

2. Unlock version , can use directly, no need to activate by us

3. FGTECG V54 PCB board

FG Tech Galletto 4 Master v54 Description:

FGTech Galletto 2-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.

Boot Mode System TriCore:

Infineon Tricore Sak TC1766

Infineon Tricore Sak TC1767

Infineon Tricore Sak TC1792

Infineon Tricore Sak TC1796

Infineon Tricore Sak TC1797

NEW JTAG - BDM - for MOTOROLA - FREESCALE - INFINEON

Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF

New Delphy DCM3.5xx DCM3.7xx TRW

for Motorola Freescale MPC 555/556/561/562/563/564/565

for Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB

for Motorola MC 68376 Campi 01 Lamborghini - Lotus

for Motorola MC 68336 MEMS D5 ROVER

for Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG

New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac

New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu

All EDC17 MED17 is good always modify with Boot Mode tricore.

Automatic Checksum:

All old protocols included for Bosch MExx / EDCxx / Marelli / Siemens / Delphi / Lucas / Denso

Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password for Bosch , Siemens

for Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507

for Motorola Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

BDM Tricore.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM GM -FORD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,

Master Version:

Recovery Mode Completa

Funzione scan tool per eliminare i DTC

Function scan tool for erase the DTC

Controllo tensione di batteria auto in tempo reale

Check tension of battery car in real time

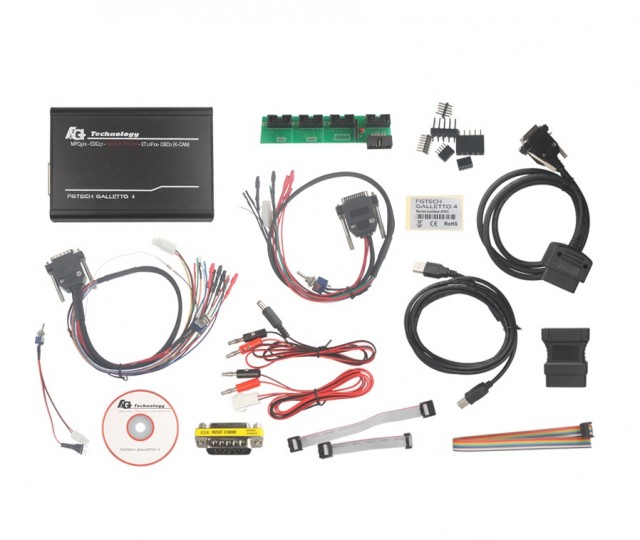

Package including:

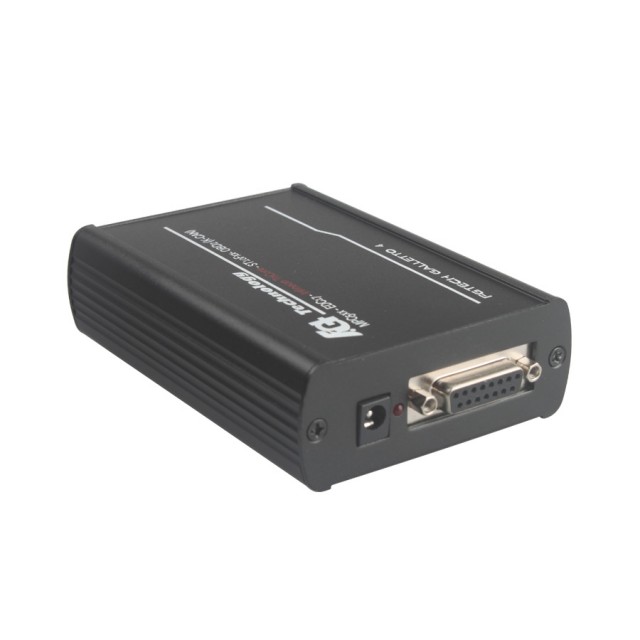

1pc x New version main interface

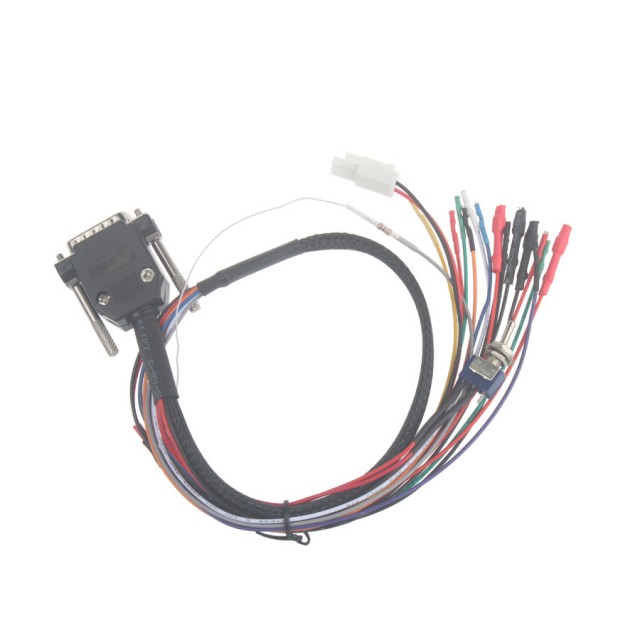

1pc x ECU cable for TriCore boot

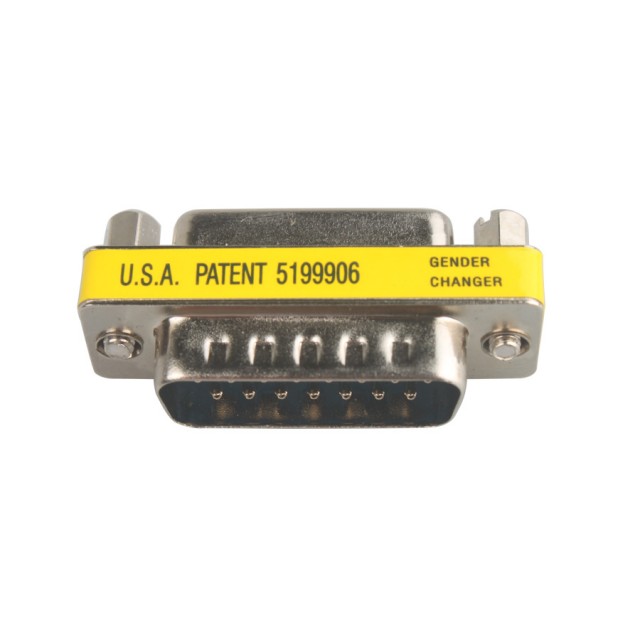

1pc x Adapter for BDM to CMD with bdm cables

3pcs x BDM adapters

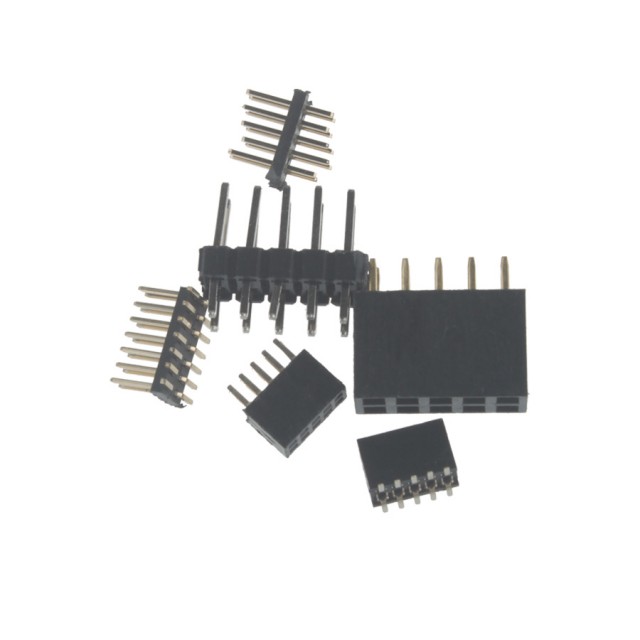

6pcs x  BDM connectors

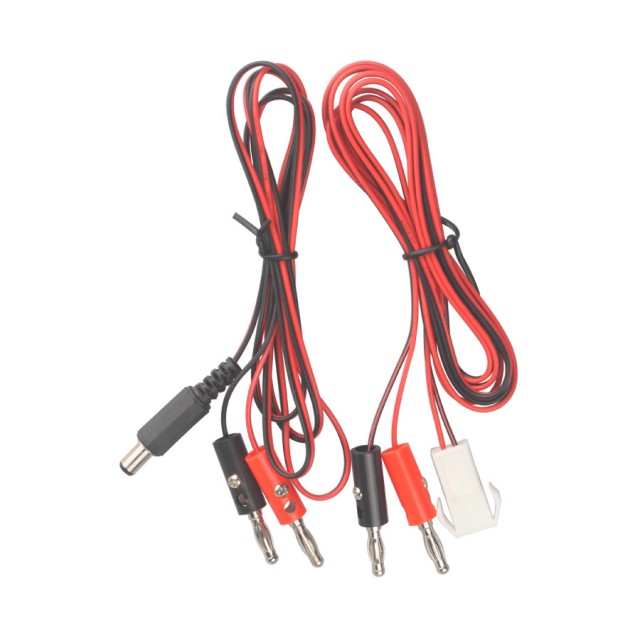

2pcs x Power cable

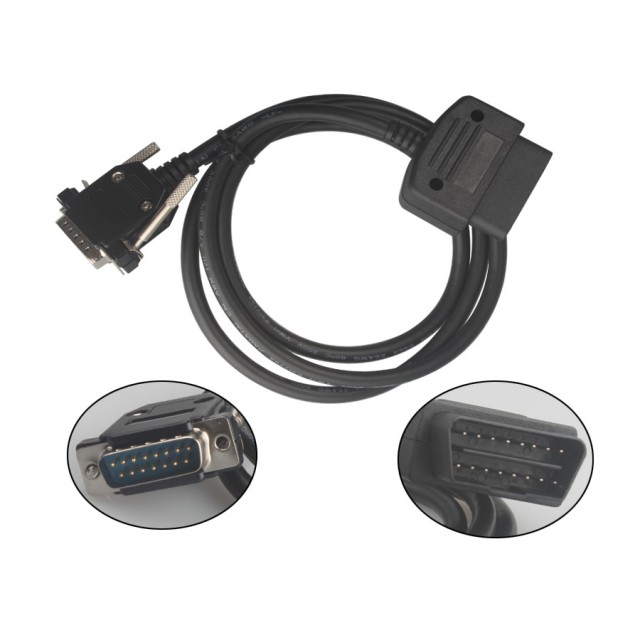

1pc x  OBD2 cable

1pc x  USB cable (1.5meter)

1pc x  CD (2012 version SW -MASTER, documents pdf, pictures, etc.)

How to install / Cum se instaleaza ?

How it looks inside / Ce contine produsul ?
