Tester diagnoza auto ENET Programari – Codari E-SYS 3.27.1 ISTA-D

Name: Tester diagnoza auto ENET Programari – Codari E-SYS 3.27.1 ISTA-D
Brand: Diagnozaobd2
SKU: ENET Profesional
Price: 168.19 RON
Availability: InStock

168,19 RON (TVA inclus) 240,79 RON

139,00 RON (fara TVA)

Costurile de livrare afisate pe site sunt valabile doar in Romania ! Livrarile in afara Romaniei se fac prin firmele de curierar DHL/DPD contracost (Veti fi contactati de catre colegii de la vanzari pentru cotatiile de transport).

Descriere

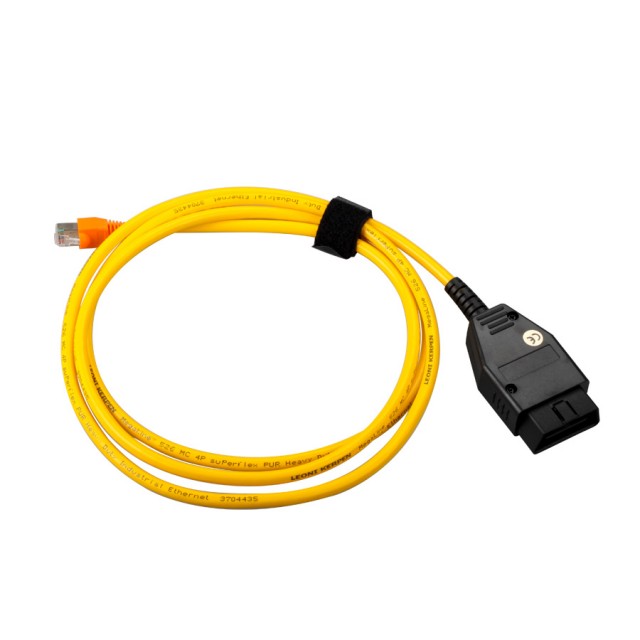

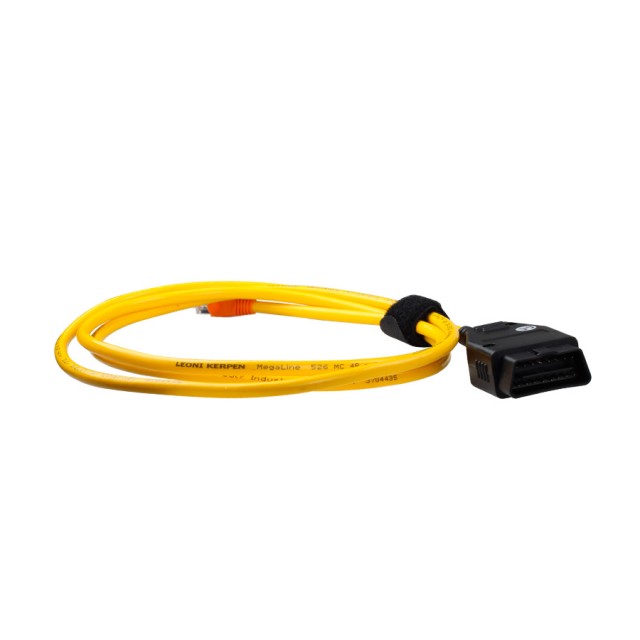

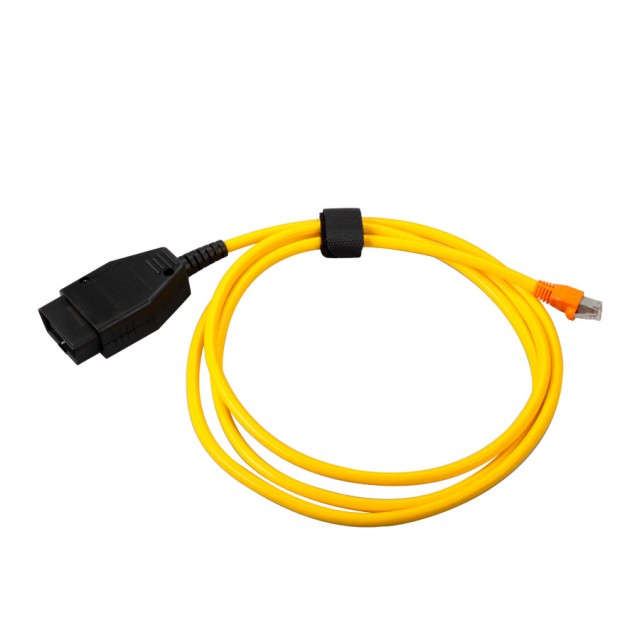

Cablul ENET este construit special pentru diagnoza si codarea autoturismelor marca cea mai cunoscuta din Romania, fiind necesar un transfer mare de date.

Cu acest cablu ENET veti putea diagnostica si coda multe optiuni suplimentare (exemplu Video in Motion) sau dezactiva optiuni deja existente (Exemplu Start Stop)

Functioneaza cu E-sys 3.27.1, ISTA-D si ISTA-P.

Compatibil cu TOATE tipurile de vehicule din seria F

Seria 1 F20, F21
Seria 2 F22
Seria 3 F30,F31, F34, F35
Seria 4 F32, F33
Seria 5 F07, F10, F11, F18
Seria 6 F06, F12, F13
Seria 7 F01, F02, F03, F04
X1 F48
X3 F25
X5 F15
X6 F16

* Daca achizitionati acest produs , puteti opta si pt AutoXData 2011 – 3.40 – 49 lei ; AutoXData 2014 – 3.45 – 99 lei ; VIVIDXWORKSHOP 2010 (lb. romana) 59 lei sau VIVIDXWORKSHOP 2015 (lb. romana) 99 lei.

Product Features

One can hide modules or program single module

1. Lock unlock sound confirmation ( to prevent radio interference, add sound to confirm car locked when turn light confirmation inconvenient. This is setup in cic)

2. Can operate the navigation menu including watching dvd when driving( for driving safety. Let the side driver operate the navigation menu )

3. Display engine output and torque meter ( purely fun, look engine output )

4. Cancel confirmation screen big screen boot delay

5. Open the voice recognition function

6. Three kind of bluetooth phone ringtones ( personality only )

7. Increasing the cic memory address to 50

8. The glass automatically rise to the top process is not terminated by the car door ( easy to get off to close the window waiting )

9. The digital speed display ( fun only )

10. Air-conditioned memory of the last off state ( without air conditioning season is more convenient )

11. Indoor cycling memories of the last time the state when engine off

12. A-pillar electric tailgate buttons and remote control a key to close the power tailgate. At any time terminate the reverse operation ( turn off 15 minutes or more reset )

13. Increasing shift paddles

14. The small screen to the large-screen display modify

15. Pdc display vertical and horizontal

16. Disable the seat belt status display - passenger seat

17. Disable the seat belt status display - driver seat

18. Disable seat belt reminder mistake ! The link is invalid. Device - passenger seat

19. Disable seat belt reminder - driving position

20. Disabled unfasten their seat belts voice prompts - passenger seat

21. Disabled unfasten their seat belts voice prompts - driving position

22. Intersection vehicle high beam automatic control ( no condition tested. Do not know if it is valid )

23. Angel eyes open and cancel functions

24 turn off the engine start-stop function turned on by default

25 gps time synchronization

26 Foot open the back cover

27 Ds show s1-s7 selection

28 Active sports gearbox program sport +

29 Single microphone settings

30 Engine off automatically unlock

31 Internet applications

32 Armrest usb playback video

33 The maximum distance disable front camera view

34 The maximum distance to disable the rear camera view

35 Maximum speed disable front camera view

36 The maximum speed to disable the rear camera view

How to install E-sys & EDIABAS, EST token, paszdata for F series coding

This is the instruction on how to install E-sys & EDIABAS, EST token, paszdata for BMW F series coding with ENET (Ethernet to OBD) Interface

----------------------------------------------------------------------------------------------------
INSTALL E-SYS & EDIABAS
------------------------- ---------------------------------------------------------------------------
01) Run "E-sys\E-Sys_Setup_3_22_5_b34057.exe" to install program to default location "C:\EC-Apps\ESG" (i.e. "C:\EC-Apps\ESG\E-Sys\")

02) During E-Sys installation, when prompted change the default Data Path from "C:\Data\" to "C:\ESysData\".

03) Copy "EDIABAS" folder to the root of "C:\" (i.e. "C:\EDIABAS")

04) Run "C:\EDIABAS\Hardware\Ediabas-Konfigurator\Ediabas-Konfigurator.exe" and make sure "Interface:" is set to "INTERFACE=ENET".

(It should already be set, but check anyway - if you need to change it, use the drop-down list and select "INTERFACE=ENET" and then "Andern" and then "Ende".)

----------------------------------------------------------------------------------------------------
INSTALL E-SYS EST TOKEN (NOT INCLUDED)
----------------------------------------------- ----------------------------------------------------
- 05) Create subfolder "E-Sys EST" under "C:\ESysData\" (i.e. "C:\ESysData\E-Sys EST")

06) Copy EST Token File (e.g. "Code Away.EST") to "E-Sys EST" folder (i.e. "C:\ESysData\E-Sys EST\Code Away.EST")

*NOTE: E-SYS EST TOKEN IS NOT INCLUDED AND MUST BE OBTAINED SEPERATELY.

----------------------------------------------------------------------------------------------------
INSTALL PSdZData (NOT INCLUDED)
------------------------------------- ---------------------------------------------------------------

07) If existing "psdzdata" folder exists in "C:\ESysData\" (i.e. "C:\ESysData\psdzdata") delete it.

08) Copy downloaded "psdzdata" folder to "C:\ESysData\" (i.e. "C:\ESysData\psdzdata")

09) Make sure that there is a "Dist" folder in each of the Chassis folders (F01/F10/F20/F25/K001/RR01) etc. (e.g. "C:\ESysData\psdzdata\mainseries\F010\F010_12_03_511\odx\dist")

(It should already be set, but check anyway - if not there - create empty "Dist" folders for each chassis folder)

*NOTE: E-SYS PSdZData IS NOT INCLUDED AND MUST BE OBTAINED SEPERATELY.

E-sys setup and copy TOKEN anywhere

You can copy the Token anywhere, but you have to go into For Bmw E-Sys settings and point to it.

Here are the detailed instructions I wrote (Note Step 9):

01) Run "E-Sys_Setup.exe" to install program to "C:\EC-Apps\ESG\E-Sys\E-Sys.exe" (Install Password is "lo8F3lsVVg" if prompted)

02) Copy "EDIABAS" folder to "C:\EDIABAS"

03) Make sure "C:\EDIABAS\Bin\EDIABAS.INI" is set to Interface = ENET
(should already be set, but check anyway)

04) Copy "e-sys est" folder to "C:\ESysData\e-sys est"

05) Copy all "psdzdata" subfolders (all 7 Folders) to "C:\ESysData \psdzdata\folders_1-7"

06) Make sure that there is a "Dist" folder in each of the Chassis (F01/F10/F25) folders etc.
(e.g. "C:\ESysData\psdzdata\mainseries\F010\F010_12_03_5 11\odx\dist")
(should already be set, but check anyway - if not there - create empty "Dist" folders)

07) Turn Car's Auxillary Power On (Engine Off) and make connection to car with OBDII-Enet Interface Cable
(Wait a few minutes until the network adapter icon shows a Connection with the yellow exclamation point over it)

08) Launch "C:\EDIABAS\Hardware\ENET\ZGW_SEARCH.exe" to verify cable and connection are working
(IP Address, MAC Address, & VIN will be displayed verifying actual communication to the car)
(ZGW_SEARCH.exe works intermittently on 64-Bit Windows - Not necessarily a problem if the ZGW_SEARCH window is blank,
so long as the computer's wired network adapter shows an IP Address assigned to the computer from the car)

09) Run "C:\EC-Apps\ESG\E-Sys\E-Sys.exe" (It will take E-Sys a while to write the log file) and Under Options, Settings:
On the ODX Tab, set the ODX Rule Path to "C:\ESysData\Rules"
On the EST Tab, set the Developer-Soft-Token EST Path to "C:\ESysData\e-sys est\Code Away.est"

On the PROGRAM TAB, set the Directories - Data Path to C:\ESysData

10) Hit the Connect Button on E-Sys

Selcect Target Vehicle (e.g. TargetSelector:Project=F010-12-03-511m VehicleInfo=F010)

11) Select Connection via VIN, and click Connect
(Window should pop up confirming successful connection)
(The program will remember the "connection via VIN" for future connections)

12) After connecting to the car, each time you launch E-Sys, and Read / Code an ECU the first time, you will need the E-Sys PIN, which is 2690.

Package List:

1pc x For ENET (Ethernet to OBD) Interface Cable
