Osciloscop Hantek 6022BL PC USB 2 Digital Channels 20MHz Bandwidth 48MSa/s Sample Rate 16 Channels Logic Analyzer

Descriere

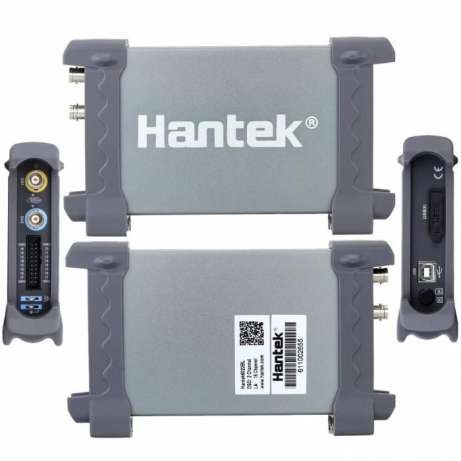

Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.

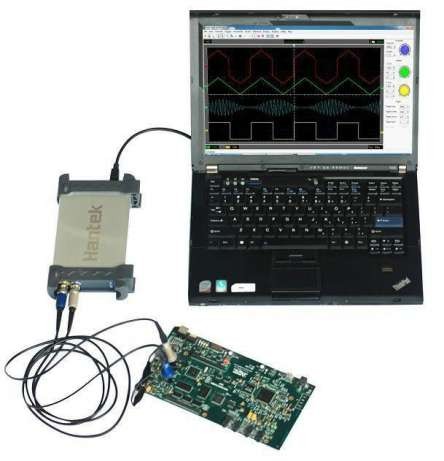

Be suitable for notebook computer, product line maintenance, be used easily on business.
High performance, .

Product Description
Features

* Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
* 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
* Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, * division, X-Y plot.
* Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
* One computer can connect many DSO, extend channel easily.
* PID/VID Second Design instance.

Specifications

* Memory Depth: 1M
* Rise Time: 17.5ns
* Time Base Precision: ±50ppm
* Time Base Range: 4ns/div-1h/div (Step by1-2-4)
* Input Impendence: 1MΩ 25pF
* Input Sensitivity: 10mV/div～5V/div
* Vertical Resolution: 8Bit
* Vertical Position Range: 10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe; 1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe
* DC Accuracy: ±3%
* Bandwidth Limited: 20MHz
* Trigger Type: Edge, Alternative
* Trigger Source: CH1, CH2, EXT, EXT/10
* Math : +,-,x,÷,FFT, Invert
* Cursor Measurement: Cross, Trace, Horizontal, Vertical
* Auto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Logic Analyzer

* Max. Impendance: 1MΩ(C=7.5pF)
* Max. Voltage: 0V~5.5V
* Max. Sample: 48M
* Bandwidth: 10MHz
* Compatible Input: TTL, LVTTL, CMOS
* Memory Depth: 1M/CH
