Osciloscop 8 canale Hantek 1008C

Descriere

Osciloscop profesional original dedicat domeniului auto, are 8 canale, 2.4MSa/s real time. Detine 12 biti cu rezolutie verticala, functie analiza spectrum. Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus. Senzori ce pot fi verificati : debitmetru, axa cu came, arbore cotit, distribuitor, senzor lambda, clapeta acceleratie.

Exista mai mult de 20 de tipuri de testare automata, are interfata similara cu osciloscopul benchtop, usor de folosit. Pentru instructiuni, software si drivere puteti accesa site-ul producatorului: http://www.hantek.com/en/ProductDetail_13_136.html

Model: Hantek1008C
Vertical
Analog Channel: 8
Input Impedance: Resistance: 1M
Input Sensitivity: 10mV/div to 5V/div
Input Coupling: DC
Resolution: 12 bits
Horizontal
Memory Depth: 4K
Max. Input: 400V (DC+AC Peak)
Real-Time Sampling Rate: 2.4MSa/s
Time Base Range: 1ns/div to 20000s/div(1-2-5 sequences)
Time Base Precision: ¡ 50ppm
Trigger
Source: CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Mode: Edge
X-Y Mode
X-Axis Input: CH1
Y-Axis Input: CH2
Cursors and Measurement
Voltage Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process: +,- , x,¡, FFT, Invert
Voltage Range:
10mV to 5V/div at x 1 probe
100mV to 50V/div at x 10 probe
10V to 5000V/div at x 1000 probe
100V to 50000V/div at x 10000 probe
200mV to 100V/div at 20:1
Current Range :
100mA to 50.0A/div at CC65(20A)
1000mA to 500.0A/div at CC65(65A)
1A to 100.0A/div at CC650(60A)
10A to 1000.0A/div at CC650(650A)
1A to 200.0A/div at CC1100(100A)
10A to 2000.0A/div at CC1100(1100A)
Cursor: Time/frequency difference, voltage difference
FFT: Rectangular, Hanning, Hamming, Blackman Window
Math: Addition, subtraction, multiplication, division
Note:
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7

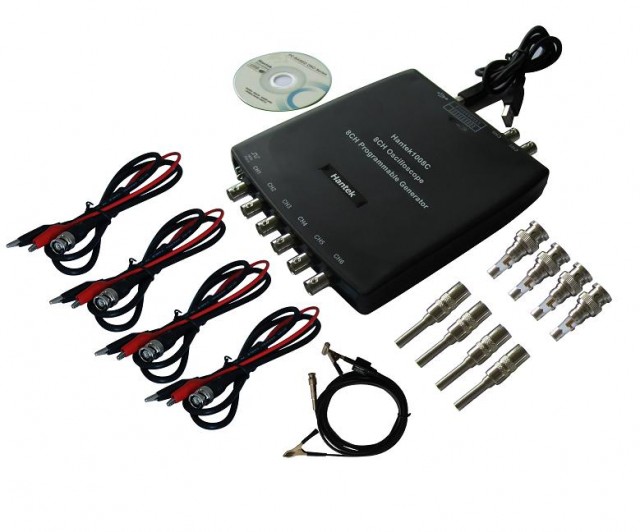

Pachetul contine:

1 x 1008C DAQ oscilloscope
1 x Auto-probe
4 x Crocodile proba/cablu
4 x conector BNC
1 x cablu USB
1 x CD (driver etc.)

1 x Auto-probe instruction
