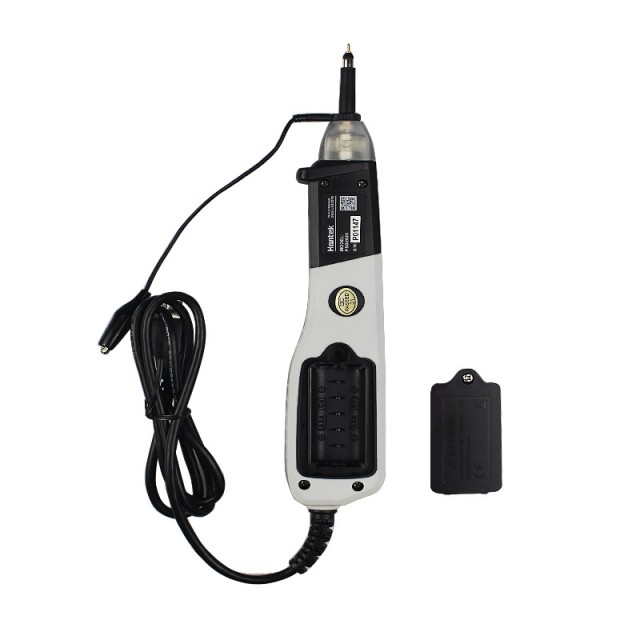

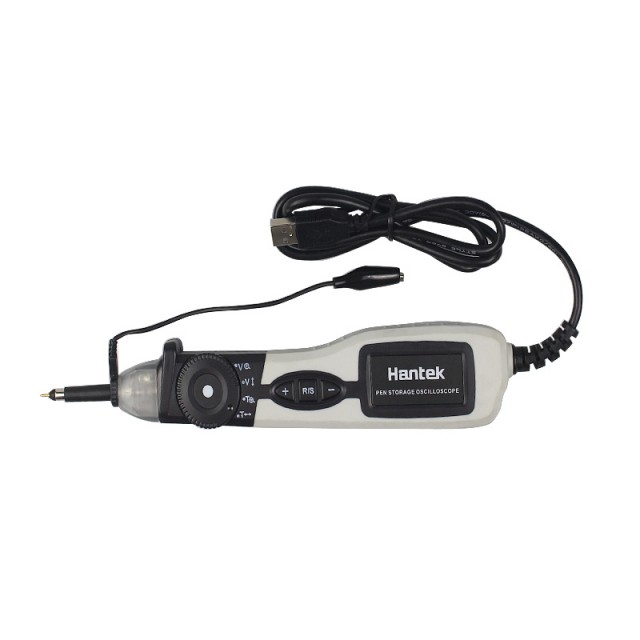

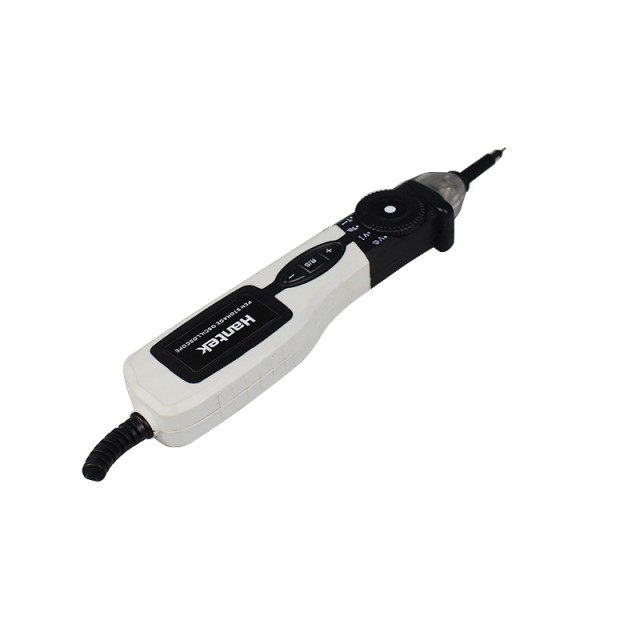

Hantek PSO2020 Handheld Oscilloscope Portable Pen Type PC Based Storage Digital Osciloscopio 20MHz 1 Channel Logic Analyzer
As a plug and play device with automatically measurement function, it's powered by USB interface and easy and convenient in operation. You can change the voltage/time division gear with single hand, no need any operation by keyboard or mouse.
Why choose pso2020:
1.Plug and play device,Power by USB inferface.
2.Driver and software established quickly and easily,easy to handle PC Program.
Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.
Change the voltage/time division gear with single hand, no need to operate on the computer.
Built-in LED light, providing better light for user's convenient operation in dark environment.
Light weight and portable in design, suitable for use.
DVM(digital voltmeter)function, real-time display the voltage measurement results.
20MHz bandwidth, meet the requirements of measurement.
Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
Operating system:Windows NT,Windows2000/XP, WIN7/8.
Possible to connect to laptop directly, high cost performance.
Input Impedence: 1M
Input Sensitivity: 20mV/div to 50V/div
Input Coupling: DC/AC/GND
Vertical Accuracy: 3%
Resolution: 8 bits
Memory Depth:Maximum 1M/CH
Max. Measurement Voltage: plus/minus 50V (Without any attenuation)
Input Protection: 100V (DC+AC Peak)
Max. Sample Rate: 96MSa/s
Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)
Trigger Source: CH1
Trigger Type: Edge Trigger
Cursor and Measurement
Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Cross, Trace, Horizontal, Vertical
Voltage Range: 20mV to 20V/div x 1 probe
FFT: Rectangular, Hanning, Hamming, Blackman
Auto Set: Yes
Interface: USB 2.0
Power Supply: USB Power Supply
Dimensions: 230 x 40 x 20mm / 9.05 x 1.57 x 0.8in
Weight: 135g / 4.76oz
Package Weight: 263g / 9.29oz

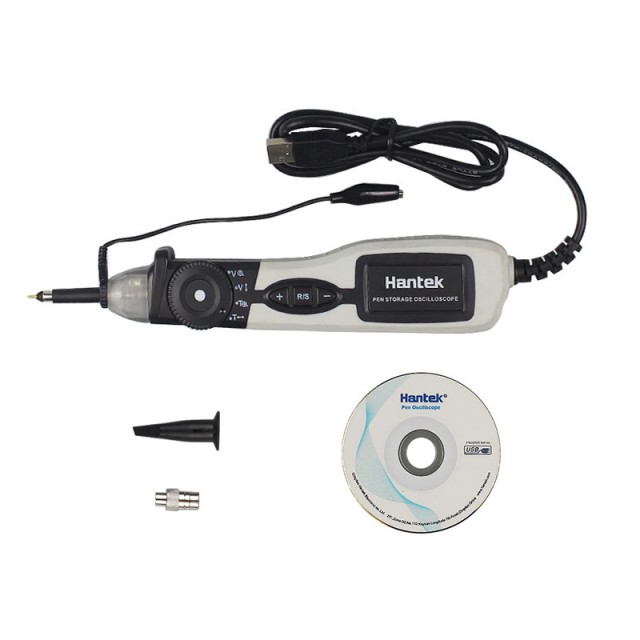

1 PSO 2020 Pen Oscilloscope
