XPROG-M V5.55 pachet full, Programator memorii, chipuri si EEPROM-uri

Description

Top motive pentru a cumpara acest xprog-m v5.55:

1. Versiune: V5.55. Tara de provenienta UE.

2. Este singura versiune de XPROG-M care poate decripta BMW CAS4.

3. Noi autorizari adaugate: AUTH-0025 Authorized 11/4/2014

4. Poate fi instalat si pe windows XP si pe Windows 7

Autorizari XPROG-M V5.55:

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 BM-W EWS3 authorization

AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 MB ZGS001 authorization

AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx

AUTH-0024-1 MC9S12Cxx

AUTH-0024-2 MC9S12XE

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx Authorized 11/4/2014

Adaptoare incluse XPROG-M V5.55:

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 Motorola HC05B/X PLCC52 programming adapter

ADP-0005 Motorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Additional adaptor for 5M48H P-Flash

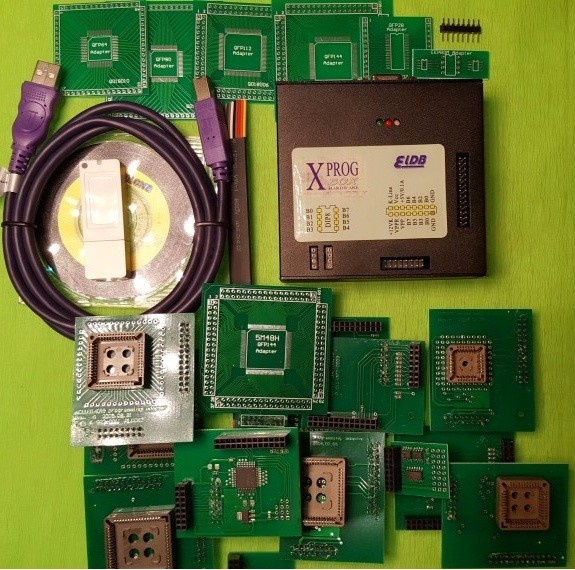

Continut pachet:

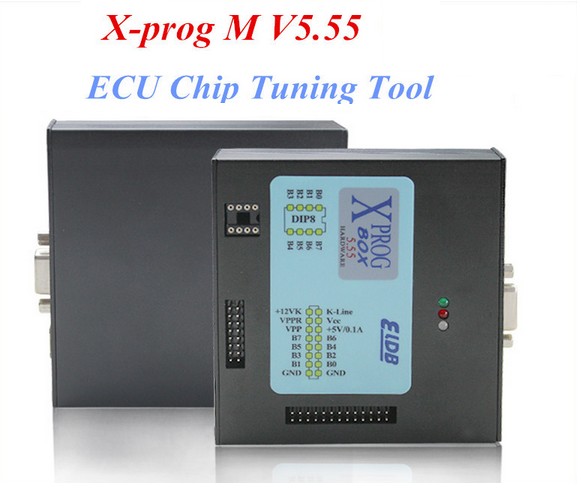

1pc x  XPROG-Box Hardware (Aluminum Enclosure) .

19pcs x  Basic Software Authorizations and Programming Adapters Set

1pc x  USB Cable.

1pc x USB Dongle

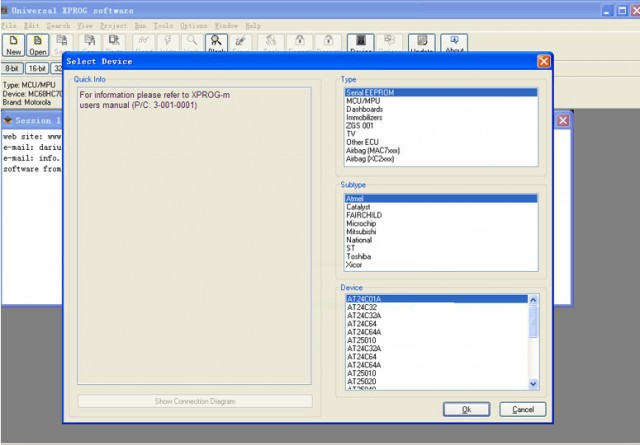

1pc x  CD with XPROG-Box Software (V5.55)
