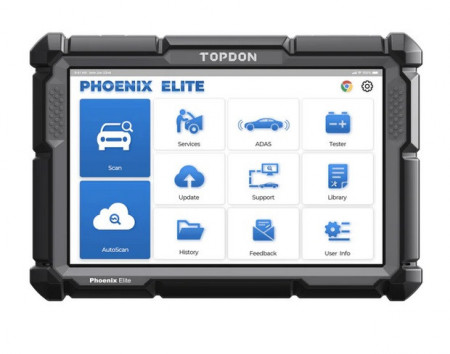

TOPDON Phoenix Elite tableta 4/64Gb, 10.1 inch, Tester Auto Profesional Wireless, Codare Online, ADAS, multiple servicii de resetare, Doip + CanFD, Update gratuit 2 ani

CONNECT TO THE NEWEST VEHICLES

Vehicle communication is enhanced with most of the latest communication protocols. The Phoenix Elite comes equipped with wireless VCI and CAN-FD capabilities.

ALL DATA ON ONE SCREEN

-Topology mapping displays related vehicle systems and CAN network.
-Diagnose communication issues instantly.
-Color-coded mapping of each module’s communication status.
-Offer active tests, special functions, coding, initialization, and memory resets.

GUIDED FUNCTIONS FOR VAG VEHICLES

Step-by-step guided diagnostics procedures based on code for VW and Audi Vehicles.

VEHICLE AUTO VIN AND AUTODETECT

The Phoenix Elite automatically captures the vehicle’s VIN number and finds all relevant information about the vehicle. Use this feature to save time and prevent mistakes.

PRE-SCAN AND POST-SCAN REPORTING

The Pre-Scan and Post-Scan features allow the technician the ability to record the codes prior to repair. This will enable copies to be given to insurance companies and customers for repair approval. When the repairs are completed, the Post-Scan report can be recorded showing all codes are clear, showing off the vehicle's clean bill of health.

EXPAND YOUR CAPABILITIES WITH ADAS CALIBRATION

Stepping beyond diagnostics, the Phoenix Elite introduces ADAS capabilities to auto shops. Download the ADAS upgrades and pair with a Phoenix ADAS system to turn your Phoenix Elite into a calibration station, creating a new revenue stream for auto shops.

Features

• Online Coding
• Wireless VCI with CanFD protocol
• Supports ADAS Calibration and Battery Testing
• Full-System Diagnostic for Over 200 Models
• Topology Mapping for a Clear Picture of All Systems
• 34 Maintenance Service Functions
• FCA Secure Gateway Access to Newly Released Cars

Specs

• Display: LCD 10.1” touchscreen, 1280*800
• CPU: 4-Core Processor, 2.0 GHz
• Android 10.0
• RAM: 4G, ROM: 64G
• Battery Capacity: 12000 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -4°F to 140°F
• Working Temperature: 32°F to 122°F
• Dimension: 10.94 x 7.52 x 1.89”

What's in the Box

• Phoenix Elite
• VCI Dongle Equipped with CanFD
• OBDI Adapter BOX Transfer Line
• OBDII Extension Cable
• Cigarette Lighter Cable
• Type-C to USB Cable
• Battery Clamps/Cable Set
• Power Adaptor
• User Manual
• Password Envelope
• Non-16pin Adaptor Cable Kit
