Tester diagnoza Mercedes MB STAR COMPACT / MB PRO M6 Mercedes XENTRY, Suporta BMW Aicoder, BMW E-sys si BMW App

Description

Se livreaza in pachet format din tester profesional diagnoza Mercedes Super MB Pro M6, cabluri adaptoare turisme si camioane si este compatibil cu Mercedes Das/Xentry dar si cu BMW Aicoder, BMW E-sys, BMW App

Full configuration= MB Star full function+ BMW F+G series coding+ Other DoIP

What's Super MB Pro M6?
Based on M6, Super MB PRO M6 has greatly improved product functions and compatibility, and is 100% compatible with the original Mercedes-Benz software.

Features:
1.100% compatible with the original Mercedes-Benz software.

2.The front label of the M6 uses a design with trademark rights and art copyrights to improve product recognition.

3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)

4.M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.

5.M6 supports BMW E-SYS, Aicoder, wired and wireless programming and coding of F and G series, and supports BMW modification, hidden functions activation.

6.M6 supports BMW APP software, provides mobile phone English version of Bimmercode (coding hidden functions activation) Bimmerlink (diagnostics codes clearing) and other mobile phone software, supports MHD .Bimmergeeks .. XHP Flashtool. ODIS-e.XDelete.THOR-the M Flasher.PRO- Tool and other mobile apps.

7. M6 supports vehicles with DOIP communication protocol, such as the new Volkswagen, Audi, Skoda, Bentley, Lambo, etc. A dedicated transition button is provided.

8. Easy to set up. WiFi works great/stable. Battery does not drain as much as in older versions. There is a small cooler inside no overheat issue.

What's New in Super MB Pro M6?

• Supports E-SYS,  Aicoder for BMW F and G series coding
• Compatible with APP like, BMW BimmerCode, Bimmerlink, MHD, Bimmergeeks, XHP Flashtool, ODIS-e, XDelete, M Flasher, etc
• Can be used as a DoIP device for VAG

Super MB Pro M6 Car List

Passenger Car Supported List:
A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126), E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197), G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222), S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216), CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Supported List:

MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Supported List:

Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series

Unimog Supported List:

U20, UGN, UHN

Bus Supported List:

TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408, Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES

Super Sports Car Supported List:

SLR(199)

Super MB Pro M6 Connection Instructions
(1)Connect the M6 hardware box to the car diagnostic interface via the test line. The red indicator light
① on the host is always on, and the system indicator
② is flashing during startup. After startup,
② is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port
⑦ of the M6 hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced”, add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network,
④ the indicator light will be on.

(3) Wireless connection: You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is always on, the wired light is off, no setting is required, the password is 123456789.
(4) After opening the BEN software lock on the computer side, the original diagnostic test software can be used normally.
(5) For remote C-end operation, please consult us.

2, Connection between BWM software and hardware
(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, it is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and change the network connection attribute IP address to 172.29.127.* 255.255.255.0. Click “Advanced” and add a multi-IP address as 169.254.0.* 255.255.255.0. After the computer or tablet is connected to the network, the indicator light ④ will be always on. Press and hold the switch button ⑥ on the side for 3 seconds and then release it. You can see that the ④ green indicator light is always on and then flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.
(3)The wireless network can NOT be found by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet. You can connect without any settings, and the password is 123456789, ⑤The wireless indicator green light is always on, ④The wired indicator is off. Press and hold the ⑥ switch button on the side for 3 seconds and release it, you can see ⑤the wireless green indicator light is always on and turns to flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.
(4) The computer-side BWM software adopts wired or wireless connection, and the mobile phone BWM APP software adopts wireless connection.
(5) For remote C-end operation, please consult us.

3. For DOIP function and hardware connection of other diagnostic test software, please refer to BWM software and hardware connection method

Super MB Pro M6 PCB Display:

Super mb pro m6 vs mb sd c3 vs mb star c4 plus vs OEM C6

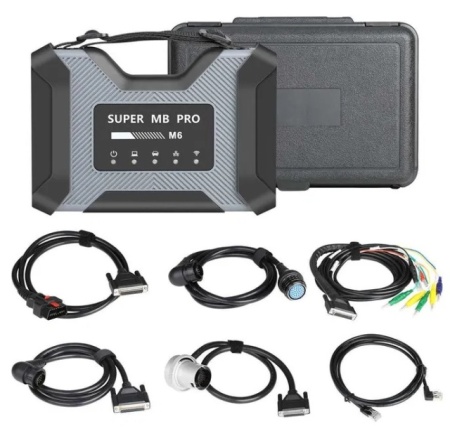

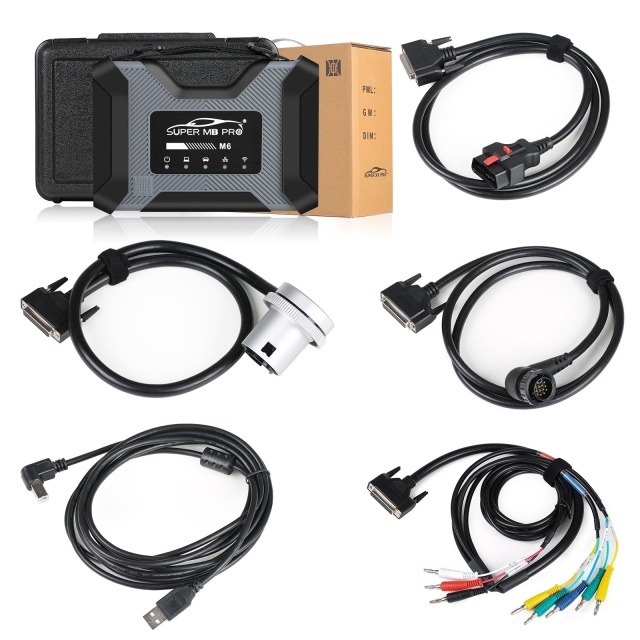

Pachetul contine:
1. Multiplexor Star MB Pro M6
2. Cablu cu 16 pini OBD2.
3. Cablu cu 38 pini ( pentru modelele vechi )
4. Cablu cu 14 pini ( pentru Sprinter, autobuze )
5. Cablu cu 4 pni  ( pentru modele vechi )
6. Cablu cu legatura direct la ECU pe banc

Optionale contracost:

1. Laptop Panasonic dedicat Mercedes, gata instalat

2. Instalare programe pe laptopul dvs, la cerere.
