Promotie ! Interfata auto THINKCAR Pro Bluetooth IOS Android full software diagnoza auto, 12 luni update online, 5 functii de reset incluse

Why You Need THINKCAR Pro?

THINKCAR Pro is a portable and economical car fault diagnosis tool suitable for DIY individual users and small repair shops.
THINKCAR Pro is composed of a diagnostic connector and an APP, connected to the vehicle diagnostic socket through the connector, and wirelessly communicates with a smart phone or tablet through Bluetooth, so as to install client software and diagnostic software on the smart terminal to perform car fault diagnosis, including reading the version Information, code reading, code clearing, reading data stream, special functions, etc.
Supported models: compatible with all models supporting OBD II protocol after 1996
Supporting agreement: ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)

Cost-effective Car Scanner THINKCAR Pro supports All car models full OBDII functions & Full system diagnosis Software lifetime free & 5 resets services free for 1 year PK Thinkdriver & AP200 & THINKCAR Pro & BT200

THINKCAR Pro： ALL Car Brands with 5 resets Free for One Year
Thinkdriver:  Only 3 VIN(Car) Free One Year
AP200:        Only One Car Brands For Free One Year
THINKCAR Pro:
For OBD2 Function: Free For All Car
For Full System Diagnostic: Free For All Car

5 Maintenance RESET Functions

This OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:

1. Oil Lamp Reset
Service : allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. SAS Reset service: helps clear the fault
steering angle sensor memories and plays an important role in the steering angle sensor calibration.

3. IMMO Reset: the unique car key programming and
read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

4. Injector Coding Reset: Leaking injectors and some dead injectors
can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off

5. Elec. Throttle Rlrn Service: Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically
fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

Full System Diagnoses:

With superior all systems diagnoses, this multipurpose OBD2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.
* Examinate your car like a professional mechanical technician
*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;
*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;
*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;
*The active test used to access vehicle-specific subsystem and component tests.

ALL 10 Mode OBDII/EOBD Functions:

Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear DTCs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Support Mobile Phone&Tablet Computer

Android: 5.0
IOS: 9.0
THINKCAR Pro Mini OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 4.2 and APP. It is suitable for most DIY car owners and maintenance and repair car stores on the market.

Special functions

Intelligent diagnosis
Diagnose report
Print function (share first and then open with browser)
Automatically read VIN
Identify the car model
Automatic diagnosis
DTCs Lookup
Diagnosis function record playback

How to use THINKCAR Pro ?

1) Download and install the APK ”Thinkdiag” in Google Play or your smartphone and sign up for a new account And log in.
2) Activate the device in APK ”Thinkdiag”, binding serial number for the first time;
3) Plug the THINKCAR Pro dongle into the vehicle’s 16 pin OBD2 Data Link Connector and then turn on your vehicle.
4) Tap Me/Setting button of your device to bluetooth pair the THINKCAR Pro with your device
5) Start to diagnose your car.
Note：5 Reset Service(Oil,immo,Ele. throttle Rirn,Injector,SAS) for all cars free for 1 year. After 1 year ,costs 29.95 USD/Year
Praise points activity：You can get 20 points after“Comment Five Star Praise”,20 points equal to “20$”,which can be used to purchase car software or reset function."

What Languages does THINKCAR Pro support？

Support 9 kinds of Languages : Russian, English, French, German, Spanish, Italian, Portuguese, Japanese,Polish

Support Cover Up to Over 110 Major Vehicle Manufacturers From America, Europe and Asia

THINKCAR Pro can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port. Please click here to check the Vehicle Coverage.
Examples are as follows:
European and American area
Ford Europe, Mercedes-Benz commercial vehicles, MINI, West, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Porsche, Citroen, Skoda, Rover, Land Rover, Volvo, VAZ, Renault, Elves, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, Saab, Ford, Chrysler, GM.

Asia-pacific region
Thailand Isuzu, Acura, Daewoo, Jianghuai cars (GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling Automobile, Mahindra (MAHINDRA), Isuzu, Suzuki, Byd auto, Chery cars, Toyota, Nissan, Kia, The Car, The Great Wall in cars, Daihatsu, Changan automobile, Geely automobile, Xiamen Jinlong, Zhongxing automobile, Hafei automobile, New Kay, Gonow automobile, Changhe automobile, Hyundai, Liuzhou Wuling, Subaru, Xiali, Australia ford, Mitsubishi, TATA, Zhongtai automobile, Horton, MARUTI, Lexus.

Package:

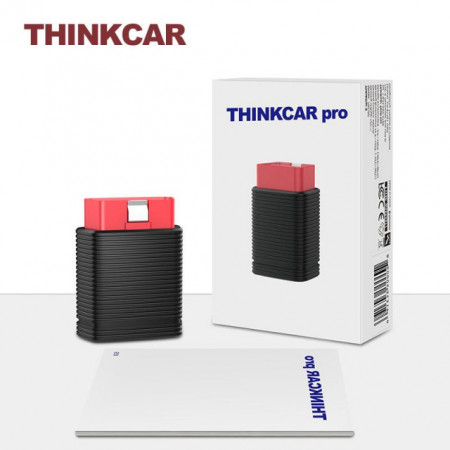

1 * THINKCAR Pro OBD2 Scanner
1 * Instruction manual (Multilingual: English/French/Japanese/Italian/Portuguese/Russian/Spanish/German/Polish)
