Original Tango Key Programmer V1.103 Update Online

Original Tango Key Programmer V1.103 Update Online

RON 6,499.00 (3% discount)
RON 6,299.00
Stock: 3
Available in 7-10 days from the order date
Phone orders - 0760.846.754; 0771.539.749; 0763.920.531; 0756.773.632;0760.846.754; 0771.539.749; 0763.920.531; 0756.773.632;, Program de lucru: Luni-Vineri 09:00-17:30, Sambata On-line, Duminica Liber
Product code - SKU: Tango KPG

Description

Original Tango programmer is a new generation of transponder programmer which is developed to cover, read, write and generate the latest transponders used in the latest vehicle immobilizer technologies.


VERY IMPORTANT! PLS NOTICE:

1. After buy it, you will need to connect to the official website and update within 28 days, or it will get locked!

2. If you want to get authorization for special functions or cars, please refer to this website

3. After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car!

It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system!



Tango software added (online update)

Key maker Toyota Yaris 2004 (93C56,4C)*
Key maker Kia Soul 2008- (TC1762,HITAG)
Key maker Isuzu KB250 2004- (93C66,4D)
Key maker Mitsubishi Fuso Canter 2009- (93C66,4D)
Key maker Fiat Ducato 2012- (95640,HITAG)*
Key maker Fiat Burstner Viseo 2011- (95640,HITAG)*
Key maker Kawasaki Denso ECU 21175-0811 (93C86,ID4D)
Key maker Peugeot Boxer 2012- (95640,HITAG)*
Key maker Peugeot Manager 2013 (95160,HITAG)*
Key maker Renault Latitude 2010- (9S12, HITAG)*
Key maker Renault Safrane 2010- (9S12, HITAG)*
Key maker Renault Samsung SM5 2010- (9S12, HITAG)*
Key maker VW New Betle (9S12, ID48EMU)
Dump maker BCM2 (95320,NEC)*
Image generator Great Wall ID40
Format Megamos48
Fixed bug EDC17 Dump editor


Tango Software v1.96    Tango software added (online update)

Key maker Toyota Yaris 2004 (93C56,4C)*
Key maker Kia Soul 2008- (TC1762,HITAG)
Key maker Isuzu KB250 2004- (93C66,4D)
Key maker Mitsubishi Fuso Canter 2009- (93C66,4D)
Key maker Fiat Ducato 2012- (95640,HITAG)*
Key maker Fiat Burstner Viseo 2011- (95640,HITAG)*
Key maker Kawasaki Denso ECU 21175-0811 (93C86,ID4D)
Key maker Peugeot Boxer 2012- (95640,HITAG)*
Key maker Peugeot Manager 2013 (95160,HITAG)*
Key maker Renault Latitude 2010- (9S12, HITAG)*
Key maker Renault Safrane 2010- (9S12, HITAG)*
Key maker Renault Samsung SM5 2010- (9S12, HITAG)*
Key maker VW New Betle (9S12, ID48EMU)
Dump maker BCM2 (95320,NEC)*
Image generator Great Wall ID40
Format Megamos48
Fixed bug EDC17 Dump editor

Tango Software V1.96.11, Tango Software Added:

Key maker Chevrolet Cruze 2008- (24C16,HITAG)
Key maker Chevrolet Lacetti 2005- (ST7,ID4D)
Key maker Renault Mascott 2002- (93C66,HITAG)
Key maker Renault Clio II 2003- (93C66,HITAG)
Key maker Hyundai Accent 2004- (93C56,ID4D)
Key maker Hyundai H1 2001- (93C56,ID4D)
Key maker Hyundai H200 2001- (93C56,ID4D)
Key maker Hyundai Santa Fe 2006- (93C56,ID4D)
Key maker Hyundai Sonata 2003- (93C56,ID4D)
Key maker Hyundai Starex 2002- (93C56,ID4D)
Key maker Hyundai Terracan 2001- (93C56,ID4D)
Key maker Hyundai Trajet 2004- (93C56,ID4D)
Key maker Kia Carnival 2002- (93C56,ID4D)
Key maker Kia Sorento 2003- (93C56,ID4D)
Key maker Volvo V40 2004- (9S12,ID48)
Key maker Volvo V50 2004- (9S12,ID48)
New pictures in help file (total 315MB)

Tango Software V1.79:

Key maker Honda Stream -2006 (93C46,ID48)
Key maker Honda Fit 2007- (93C66,HITAG)
Key maker Honda bike ECU 38770-KTW-901 (93C66,HITAG)*
Key maker Honda bike ECU 38770-MCZ-003 (93C56,HITAG)*
Key maker Honda bike ECU 38770-MFN-D01 (93C56,HITAG)*
Key maker Honda bike ECU 38770-MEE-702 (93C56,HITAG)*
Key maker UAZ Hunter (TC1762,HITAG)
Key maker Suzuki SX4 2012- (TC1762,HITAG)
Key maker Mazda B3000 2001- (95040,ID4D)
Key maker Ford Focus 2000 (77012,ID4D)
Key maker Ford Ka 2007 (93C86,ID4C)
Key maker Chrysler Voyager Limited 2008- (93C86,HITAG)
Calculator Techstream 96 digits*
New pictures in help file (total 304MB)

List of Supported Transponders:

Philips Transponders:
PCF7930-31 writing, reading
PCF7935 writing, reading, shadow memory, crypto calculator
PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings
PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7943 transponder, remote, Manchester & Biphase encodings
PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7946 transponder, remote, Manchester & Biphase encodings
PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7961 transponder, remote, Manchester & Biphase encodings
Auto switching between PCF7936-PCF7961 windows if invalid type detected.
Autodetect manchester / biphase

Temic Transponders:
Temic 11 reading , writing to T5
Temic 12 reading , writing to T5

Megamos Transponders:
Megamos (13) reading , writing to T5 , emulating on PCF7930-35
Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation
Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey

Texas Transponders:
Tiris (4C) reading
Tiris (4D) DST crypto reading, writing, crypto calculator
Tiris (4E) DST crypto reading, writing, crypto calculator
Tiris (8C) reading

Atmel:
TK5551M (T5 replacement)
SAAB reading , writing to T5
The product is in working out stages, therefore the list of the supported transponders will be developed later.

Key Maker Usage.
Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.
1. Open an immobilizer dump file.
2. Choose number of the key you want create.
3. Place a transponder into the coil and click the WRITE button.
4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.

1

First of all, take a look at this picture.  The "Loaded File" window displays the immobilizer file name. Ensure that a valid dump is stored. The "Maker" window displays selected maker name. Ensure the right key maker selected.

The "info" windows display an important information:
1. Original transponder---Informs you about type of the original transponder
2. Allowed transponder---Informs you what type of transponders is suitable for the key maker
3. Data location---The immobilizer memory may be stored in various chips, the description informs you about from where you have to read a dump. Some immobilizers can have various chipsets. In this case the field displays several possible chips. Find one of them inside of the immobilizer and read it.
4. Data size---Each chip has certain memory size, the key maker accepts files with the described size.
5. Data format---This field appears in case of 93CXX eeprom seria.

There are two standards of data layout:
Intel format and Motorola format or Little Endian and Big Endian respectively.
The data layout depends on a chip-programmer that is used for eeprom reading.This field informs you what kind of format is suitable for the key maker.Usually you can see that both formats are suitable. It means that the program can understand any data layout.

Create a Key Step by Step
Firstly, run the key maker interface according to the vehicle and read information in the "Info" window. Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).
Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.
The program will analyse the dump.
If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.
Take a look at the "Info" window, the Allowed transponder field.
Ensure you use a transponder exactly the indicated type.
Place the transponder into the coil.
Choose the key position you want create in the "Keys" window.
Click the "WRITE" button.
This starts the writing process and transponder will be stored with the appropriate data.

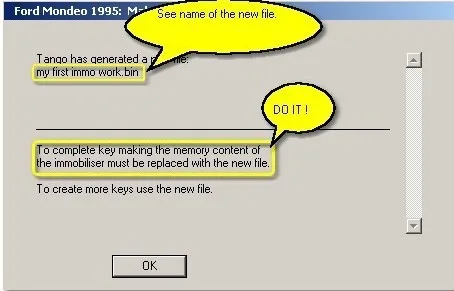

At this point you may be asked to save a new immobilizer dump.
The program displays a standard File Save dialog where you have to save the data.
After this you will be informed about the new data saved and must be written into the immobiliser.
2
Write the new dump into the immobilizer. Now it is ready to operate with the created transponder.If you are not asked to save a new file, it means that immobilizer is ready to operate with the created transponder without file replacing.

Finish

1. ABS plastic enclosure: ingress protection  IP65/DIN EN 60529
2. Rubber seal: prevents sliding on a workbench shock-proof function
3. USB connection:  no external power
4. Big hole:  adopted to large keys
5. Three small holes:  adopted to various sizes of transponders
