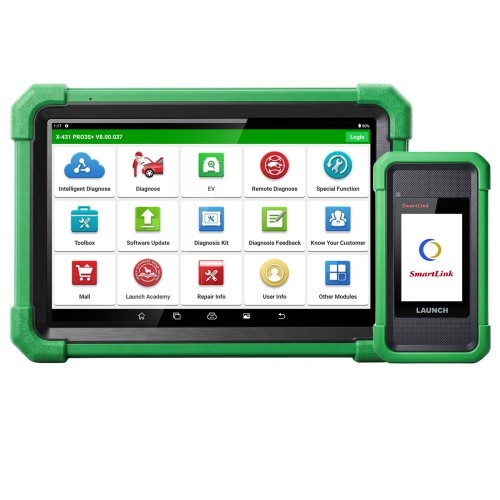

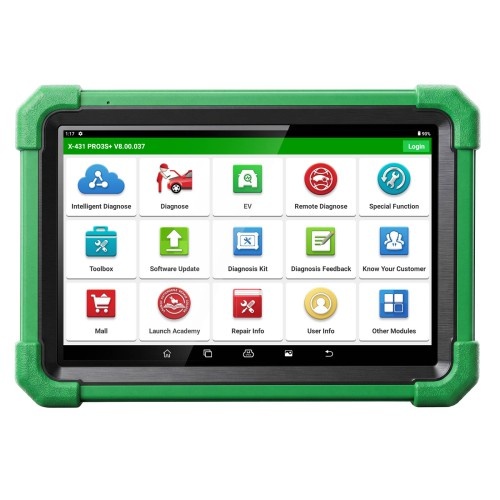

Launch Masini Electrice X431 PRO3S+ Diagnosticare Profesionala EV, tableta 10,1 inci, acceptă analiza extinsa baterii, RAPORT Sanatate Baterie + topologie CAN FD, DoIP 40+ funcții de service., 2 Ani Update

Description

Dispozitivul de diagnosticare LAUNCH X-431 PRO3S+ EV integrează diagnosticarea completă a noilor vehicule electrice cu analiza pachetului de baterii. Alimentat de sistemul de operare Android 10.0 și dotat cu un ecran de înaltă definiție de 10,1 inci, vizibil în lumina soarelui, este dotat standard cu conectorul SmartLink C V2, care acceptă atât moduri de diagnosticare locale, cât și la distanță. Acesta permite diagnosticarea sistemului de înaltă tensiune pentru vehiculele cu energie nouă și acceptă diverse metode de diagnosticare a pachetului de baterii, citind cu precizie datele privind tensiunea celulelor și temperatura, calculând inteligent diferențele de tensiune și localizând rapid defecțiunile - ceea ce îl face un instrument esențial pentru întreținerea vehiculelor ELECTRICE. Aparatul este stoc Germania, se aduce in Romania cu avans 30%.

LAUNCH X431 PRO3S+ EV Scanner Highlights:

Powerful Hardware：

• High-performance upgraded configuration: Running on Android 10.0 system with 4GB RAM and 64GB storage, it delivers ultra-quick diagnostic responses, steady multi-task operation and wide adaptability to various electric vehicles.
• Upgraded screen quality: Adopting a durable 10.1-inch strengthened display, it resists scratches well and remains clearly visible under sunlight, offering sharp viewing effects both indoors and outdoors at repair sites.
• Improved battery performance: Equipped with a 7.6V 6300mAh combined battery pack, it supplies stronger power supply and longer working hours, ideal for prolonged professional detection on EV battery systems.
• Wider peripheral adaptability: The newly added Type-A interface supports smooth linking with professional equipment including oscilloscopes, sensors and IMMO programmers, achieving integrated comprehensive vehicle maintenance.

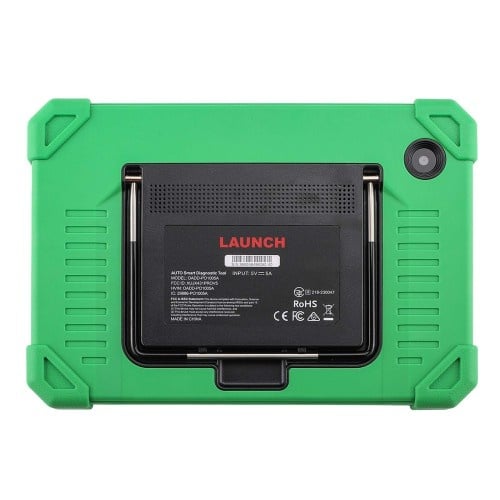

• Rugged Industrial Design: Specially designed for auto repair environments, it comes with shockproof borders, dustproof casing and a 180° rotatable bracket, convenient for wall mounting and flexible angle adjustment.

Reliable functions：

• Optional X-431 FIX Database.
• Supports Topology mapping
• Supports CAN BUS PIN Detection
• Supports AutoVIN, Guided Function, FCA AutoAuth
• OE-level EV diagnostics and battery pack diagnostics.
• Supports CAN FD, CAN 2.0, DoIP, J2534 and D-PDU protocols
• Supports diagnostic report generation, sharing, and printing
• Battery pack data stream enables precise fault detection and faster repair.
• In-depth access to cell voltage and temperature data help guide repair decisions.
• Supports dual mode diagnosis: local diagnostics and super remote diagnosis
• Fast reading of battery pack information: module count, SOC, SOH, temperature, etc.
• Supports 95% new energy vehicle models. Wide electric vehicle coverage and 20+ battery packs supported.
• Accurately reading cell voltage and temperature data, intelligently calculating voltage differences, and quickly locating faults
• It enables high-voltage system diagnostics for new energy vehicles and supports various battery pack diagnostic methods
• Supports multiple add-on modules: TPMS, ADAS, videoscope, battery tester, sensorbox, scopebox, IMMO programmer, X431 key programmer etc.
• Expandable vehicle coverage via MALL, including passenger cars, commercial vehicles, motorcycles, IMMO service, etc (purchase in Mall)
• You can purchase LAUNCH truck license 839 Eur and LAUNCH Passenger card license 600 Eur to upgrade your scanner into a 3-in-1 tool for trucks, cars and EVs.
• PRO3S+ EV Language support : English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Czech, Turkish, Greek, Arabic, Danish, Romanian, Serbian, Swedish, Traditional Chinese, Thai, Persian, Simplified Chinese

Add-on models

• Use With X-431 TSGUN: Support to activate TPMS sensors, Read sensor data, TPMS diagnose, Read/clear TPMS DTCs; Scan TPMS sensor ID, program tpms sensor.
• Use With ADAS software Calibration: Advanced driver assistance systems, or ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
• Use With S2-2 SensorBox: test and simulate most vehicle sensors. quickly troubleshooting the ECU
• Use With O2-2 ScopeBox: analyzes data for all kinds of the testing applications on the automotive parts to resolve complex electrical faults.
• Use With VSP-600 VideoScope: helps technicians to check issues on unreachable area in a vehicle So they can view, record and save images and videos.
• Use With BTS360 Bluetooth Battery Tester: Measuring the actual Cold Cranking Ampere(CCA) of the car starter battery, analyzing the battery health, and detecting the starting system and the charging system of the car.
• Use With Launch X431 Key Remote Maker Able to read Transponder, Generate Launch super chip and universal remote keys, Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Launch super chip and universal remote key
• LAUNCH X431 X-PROG3: To read/write keys to the vehicle. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement; X-prog3 will program IMMO keys for German makers only. If you want to do advanced key programming, you need to Activate the Authorization of IMMO package.
• Use With EM101N Scopebox: Ideal for measuring current, voltage and resistance in vehicles with high-voltage batteries.
• Multimeter(EM 101N)
• Current Clamp
• ES Insulation
• O2-1 ScopeBox

Powerful Diagnostic Functions:

Dual Diagnostic Modes Supports Local Diagnostics Super Remote Diagnostics Super Remote Diagnostics Server side supports: X431 diagnostic devices Specialized diagnostic devices (original equipment) Third-party diagnostic devices Diagnostic Functions Smart Diagnosis, VIN Auto Recognition, Fault Guidance, Topology Map, Rapid Scan, Guided Functions, SGW Gateway, etc. Mainstream Protocol Support Supports J2534, D-PDU and other standards Supports mainstream protocols such as CAN2.0, CANFD, DOIP, etc. New Energy Vehicle Diagnostics Supports over 95% of new energy vehicle models Keeps pace with market trends with rapid model updates and precise diagnostics Battery Pack Diagnostics Multiple battery pack diagnostic methods Comes with a complete set of connectors for new energy battery packs Resources Supports the X431 FIX database Provides a rich free resource library including repair cases, fault code help, technical manuals, operation tips, and more High Expandability Supports expansion for passenger cars, commercial vehicles, immobilizer, and motorcycles Supports various hardware expansion modules: ADAS, immobilizer programmer, TPMS, oscilloscope, sensors, and over a dozen other expansion modules

Launch X431 Pro3S+ EV Functions:

EV Diagnose
By comparing the differences between new energy vehicles and traditional vehicles, the diagnostic software logic has been optimized in terms of overall vehicle diagnostics, improving diagnostic speed while ensuring accuracy and enhancing the diagnostic experience. Currently, diagnostic software has been developed for multiple vehicle models, including BYD, Xpeng Motors, Leapmotor, Neta, Roewe, GAC, BAIC New Energy, Zeekr, etc., with a model coverage rate of over 95%. More models are continuously being updated…


System and Function
OEM-level diagnostic functions, graphical display of the entire vehicle system structure for a comprehensive view; rapid scanning to quickly locate faults; test plans guide repairs step by step.



Through battery pack data streams, the cause of faults can be precisely located, improving diagnostic and repair efficiency.


Can Bus Pin Detection
Used to detect the voltage of the pins on the vehicle's OBD-II diagnostic socket and the supported protocol types, helping technicians determine whether the OBD-II diagnostic interface has a fault.


EV Battery Pack Diagnostics
Multiple Battery Pack Diagnostic Methods Dedicated Harness Diagnosis: Diagnosis using dedicated battery pack connectors, simple and safe, plug-and-play. Jumper Diagnosis: When no standard battery pack interface is available, connect to the battery pack interface according to the diagnostic software instructions. OBD Diagnosis: Battery pack diagnosis via the vehicle's OBD-16 interface.

The battery pack is a key component of EVs. Testing the battery pack is one of the important steps in EV inspection. Using the battery pack diagnostic software, you can quickly read battery pack information, including but not limited to the number of battery pack modules, SOC, SOH, current temperature, etc. Additionally, it can deeply read the voltage and temperature values of individual cells within each module, helping technicians quickly understand the battery pack status and providing guidance for subsequent repairs.

Supports generating diagnostic reports, as well as report sharing and printing.

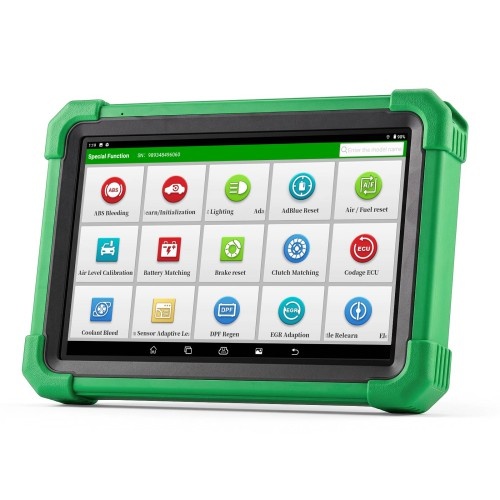

Special Functions
Supports matching, coding, and common special functions for programmable modules on most vehicle models, Such as for EV: EV air conditioning compressor testing, coolant replacement, high voltage power‑off(HVPO), on‑board charger offline testing(OBC Test), DC‑DC converter offline testing(DCDC Test), 48V mild hybrid component testing(48V MHEV Test), chip data repair, For Automotive: maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, immobilizer matching, ABS bleeding, battery matching, gear learning, injector coding, sunroof initialization, headlight matching, suspension matching, transmission matching, exhaust gas recirculation, window calibration, seat calibration, tire modification, language setting, A/F adjustment, electronic water pump activation, transport mode deactivation, start‑stop setting, automatic air conditioning initialization, engine power balance, high‑voltage battery health detection, intelligent cruise control system calibration, motor angular position sensor calibration, and other special functions.



Feedback
If you encounter abnormal vehicle software or function issues under special circumstances during use, you can report the problem to LAUNCH Company, and specialized technical staff will track and handle it.


Software Update
Supports one‑click updates for the operating system, client, vehicle software, and firmware; vehicle software updates quickly to keep pace with the market.


Repair Infor
Supports optional purchase of X431 FIX. Provides free training videos and equipment operation tips: including repair cases, fault code help, technical manuals, operation tips, etc.THIS IS NOT FREE !!



Toolbox
Supports 13 expansion modules including TPMS, ADAS, new energy current clamp, new energy oscilloscope, new energy multimeter, battery tester, etc.


Mall Supports expansion of commercial vehicle, passenger vehicle, immobilizer, and motorcycle software packages for new energy equipment.


Diagnosis Kit
Small tools such as vehicle coverage, CANScope, HD CAN BusTest, Can Bus pin detect, Flash data management, etc., assist with repairs.


License List
Supports activation of SGW gateway and other services to use corresponding functions.


Other Modules
Supports License List, My Points, error correction, opinion feedback, settings, about, and other functions.

Features of the SmartLink C V2 Connector:

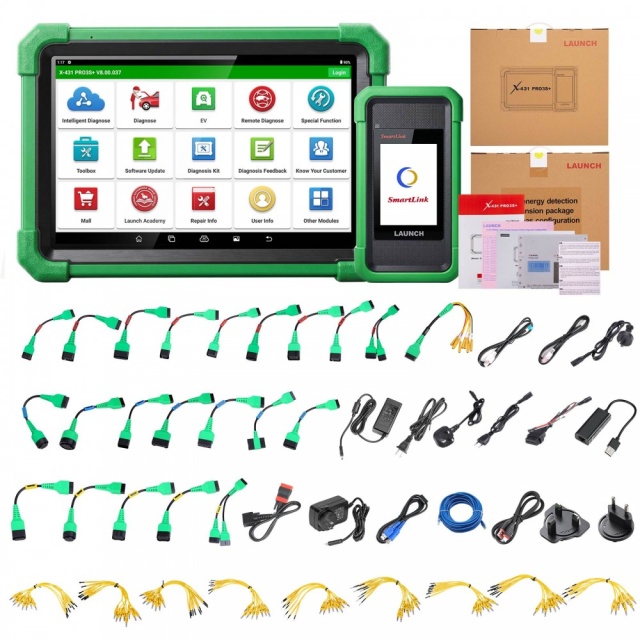

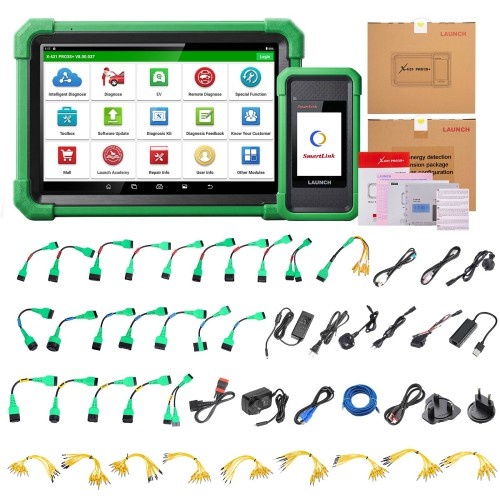

1pc x LAUNCH X-431 PRO3S+ Tablet
1pc x SmartLink C V2 Connector
1pc x remote diagnosis box V2.0 (New Energy)
1pc x DB15F to HD15F test mainline
1pc x Smartlink dedicated RJ45 to RJ45 connection cable
1pc x British standard conversion head
1pc x European gauge conversion head
1pc x Power Adapter(5V 5A)
1pc x Type A to type C USB data cable
1pc x  USB A-type to B-type data cable

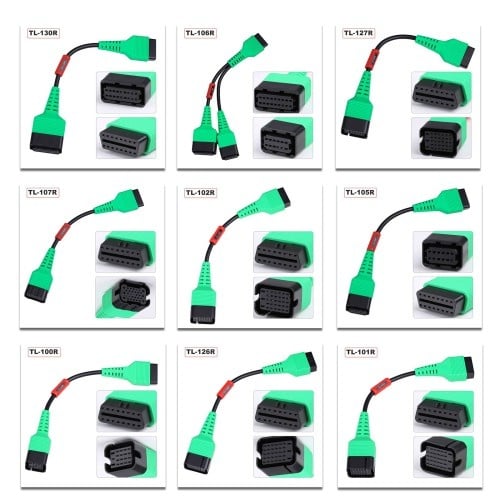

1pc x TL-130R cable
1pc x TL-106R cable
1pc x TL-127R cable
1pc x TL-107R cable
1pc x TL-102R cable
1pc x TL-105R cable
1pc x TL-100R cable
1pc x TL-126R cable
1pc x TL-101R cable
1pc x TL-104Y cable
1pc x TL-119Y cable
1pc x TL-114Y cable
1pc x TL-113Y cable
1pc x TL-109Y cable
1pc x TL-108Y cable
1pc x TL-152B cable
1pc x TL-115B cable
1pc x TL-124B cable
1pc x TL-110B cable
1pc x TL-153B cable
1pc x TL-103B cable
1pc x TL-116B cable
1pc x TL-112B cable
