Full CHIP Tester reprezentata VW/AUDI/SEAT/SKODA VAS 5054a bluetooth profesional OKI Chip Thailand ODIS 2.2.4

Full CHIP Tester reprezentata VW/AUDI/SEAT/SKODA VAS 5054a bluetooth profesional OKI Chip Thailand ODIS 2.2.4

Name: Full CHIP Tester reprezentata VW/AUDI/SEAT/SKODA VAS 5054a bluetooth profesional OKI Chip Thailand ODIS 2.2.4
Brand: FLX AUTOMOTIVE
SKU: Vas Oki Full Chip
Price: 1039.39 RON
Availability: InStock

RON 859.00 (taxes not included)

RON 1,087.79 (4% discount)

RON 1,039.39 (taxes included)

The price includes the tax TVA 21%.

Stock: 17

Limited stock

Phone orders - 0760.846.754; 0771.539.749; 0763.920.531; 0756.773.632;0760.846.754; 0771.539.749; 0763.920.531; 0756.773.632;, Program de lucru: Luni-Vineri 09:00-17:30, Sambata On-line, Duminica Liber

Product code - SKU: Vas Oki Full Chip

Description

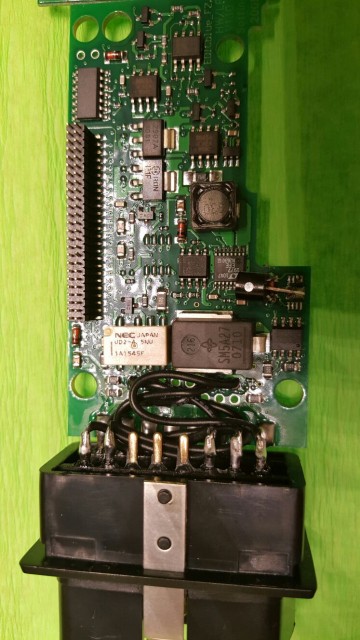

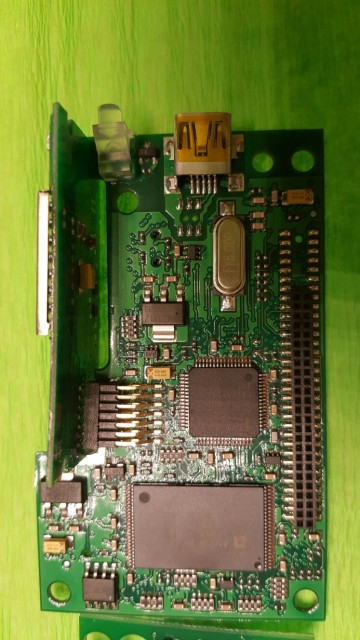

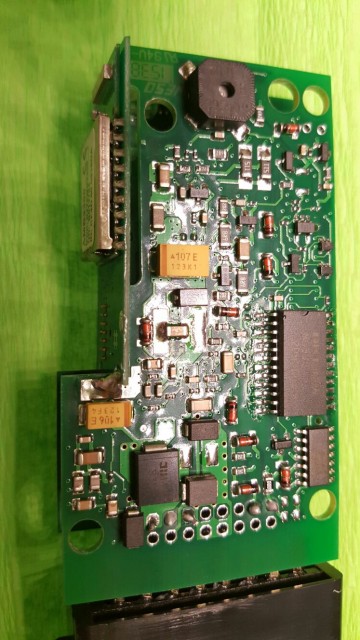

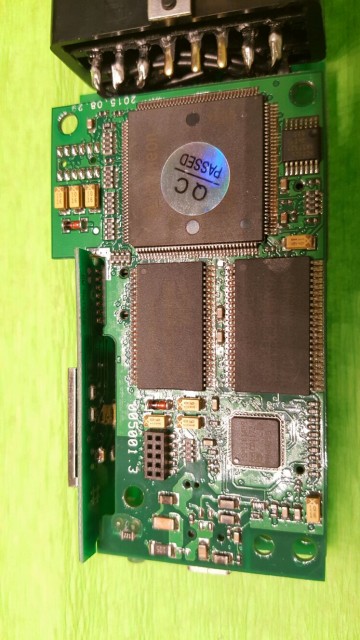

VAS 5054A ODIS V1.2.0 Bluetooth Suporta UDS Protocol si detine OKI Chip Thailand si componente Samsung - cea mai buna calitate posibila pentru aceasta interfata (poze reale pe fundal verde) !

VAS 5054A este o interfata de diagnosticare identica cu cea din reprezentantele VW/AUDI/SEAT/SKODA. Interfata se conecteaza la PC/LAPTOP prin tehnologia Bluetooth.

Daca calculatorul dvs. nu are bluetooth va putem oferi noi un astfel de adaptor

Distanta de conexiunea Bluetooth este de 5 la 10 metri, în funcţie de mediul şi de tipul de adaptor Bluetooth folosite pe partea PC-ului. Serial Port Profile (SPP) este folosit pentru transferul de date prin Bluetooth. Diferite niveluri de securitate Bluetooth sunt acceptate.

Următoarele sisteme de autobuz de vehicule sunt suportate:
§ K linie (ISO9141-2)
§ de mare viteză CAN (ISO 11898-2)
§ low-viteză CAN (ISO 11898-3)
§ J1850 (SAE J1850)

Acest lucru asigură un timp rapid de răspuns şi o alternativă fiabilă în timp real comportamentului independent de PC-uri sistemul de operare.

Interfata vine cu ultima versiune de soft si cu baza de date pt VW, SEAT, SKODA, AUDI.

VAS 5054A Features:

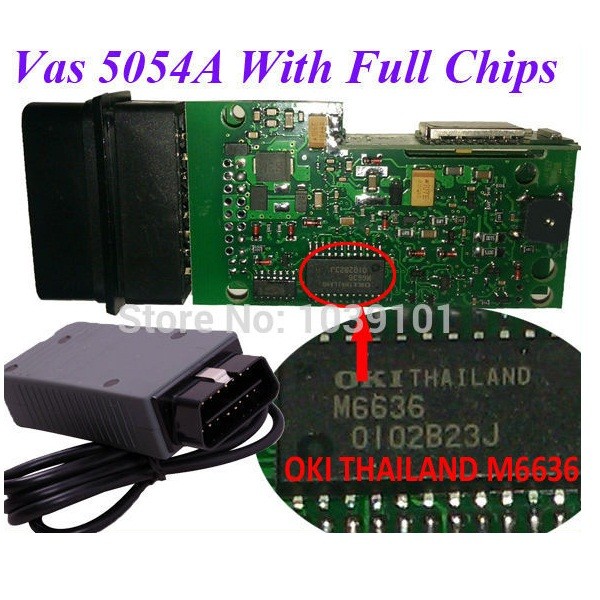

1. With OKI Chip

2. Support UDS Protocol

3. Bluetooth Version

VAS 5054A Computer Windows System Requirements:

Windows System Language: American English

Windows XP(xp2/xp3)/W7

System C:// have to be NTFS format

C:// need to have at least 10GB space for installing VAS 5054A

VAS 5054A Description:

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.

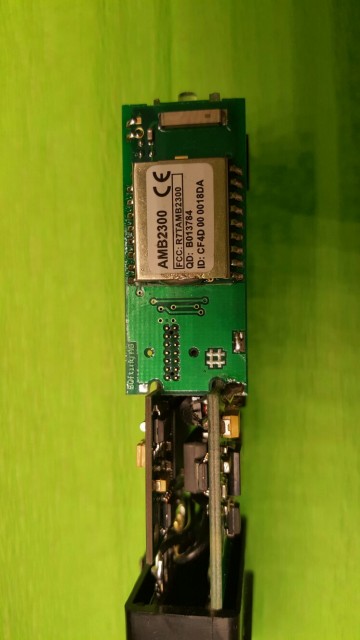

The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.

No cables are needed for vehicle diagnostics using the VAS 5054A.

The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.

The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

VAS 5054A Specification:

The vehicle protocols are handled directly in the VAS 5054A.

This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.

The diagnostic application and the associated Diagnostic Base System are installed on the application PC.

The diagnostic base system can access the VAS 5054A via Bluetooth or USB.

Access Via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.

Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The Following Vehicle Bus Systems are Supported:

K line (ISO9141-2)

High-speed CAN (ISO 11898-2)

Low-speed CAN (ISO 11898-3)

J1850 (SAE J1850)

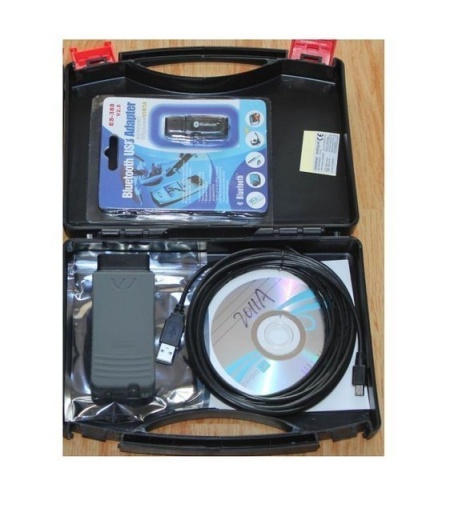

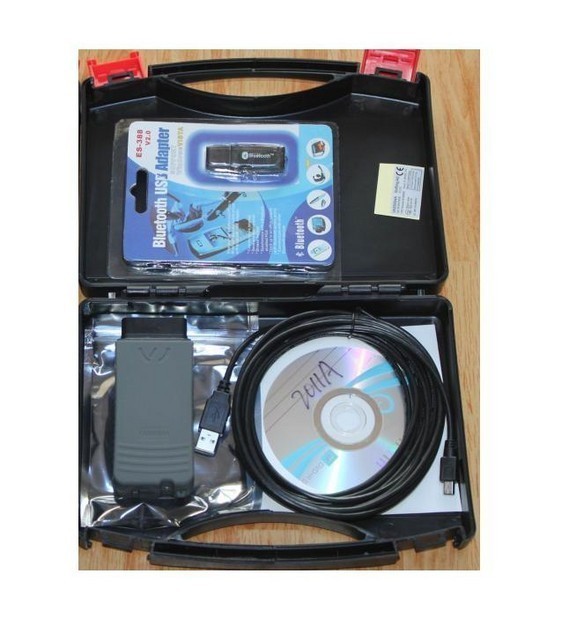

VAS 5054A Package List:

1× VAS 5054A main unit

Atentie !!! In pretul afisat nu este inclusa instalarea acestui produs. In cazul in care doriti ca instalarea sa fie efectuata de o persoana specilizata in programarea auto va rugam accesati link-ul Vreau Instalare de pe site. GRATUIT vi se ofera in format electronic instructiunile necesare instalarii, asta in cazul in care veti proceda individual la instalarea produsului cumparat.

Va multumim pentru intelegere !
