Descriere
Multi-Diag Truck Heavy Duty Diagnostic Tool Function:
1. Standard Function:
1) Alternate members, control units data parameter, calibration, reset, manual,
process
2). Read and Erase Diagnostics trouble codes (DTC)
3). Display fault codes with a code and description
4). Display storewd trouble codes with time stamp
5). Service interval reset (Maintenance systems)
6). Relearn a new clutch(MAN FFR, MB FR, Renault TECU, VOLVO TECU)
7). Relearn new pedal (MAN FFR)
8). Level regulation suspension systems (ECAS, ELC, HM,NR)
9). Calibration of brake pads (VOLVO TRUCKS)
10). Adblue systems diagnostics (Mercedes, VOLVO,DAF, IVECO)
11). Adjust brake pressures (Expert mode)
12). Calibration of pressured air system
13). Support DAF Truck function like Dignose, Messwearte, Ecu Date,
Stellglieder, Steuergerate-Daten, Parameter, Kalibrieren, Rucksetzen,
Manueller Prozess
2. Systems to Diagnose with MULTIDIAG TRUCK:
Enginemanagement - Injection (Diesel injection) Read and erase fault codes
- Live data and parameters display - Activation tests
ABS Brake systems - Read and erase fault codes - Live data and parameters
display - Activation tests
Transmission (Read and erase fault codes - Live data and parameters display
- Basic calibration with some models)
Retarder (Read and erase fault codes - Live data and parameters display)
Air suspension system (Read and erase fault codes - Live data and parameters
display - Level calibration with some models)
Instrument cluster and maintenance system (Service interval reset, maintenance
reset, next service)
3. Integrated Workshop Information System: (This function is special, is what WAS
Multi-Diag Truck Tool additional provide)
The WAS MULTIDIAG TRUCK not only provides you with excellent diagnostics
features, it also integrates a full workshop information system. Model and system specific
information is directly linked with the selected model or system. This gives you direct access to the following
information:
Default values and expected values compared to your measurements
maintenance plans and maintenance checklists
Torque information, amount of oil and liquid levels
Specific tests of components or component groups. With values hints how to test them
Graphics and drawings of components and where to find them in the truck
4. MULTI-DIAG Tachograph
Additional heater, cabin climate control
Central Computer and body computer
Immobilizer - read and erase fault codes
Body control modules (Door module)
Alarm system (Read and erase fault codes)
exhaust gas treatment, anti pollution (AdBlue System)
Relearn new clutch ( FFR Module, FR Module, TECU Module)
5. MULTI-DIAG Level Calibration
Transmission system - basic calibration (MAN FFR, VOLVO TECU, RENAULT TECU)
Systems search: (ACTROS 2, SCANIA, Renault DXI)
Cylinder test and compression test
Tire pressure control system, airbag, lane guard system)

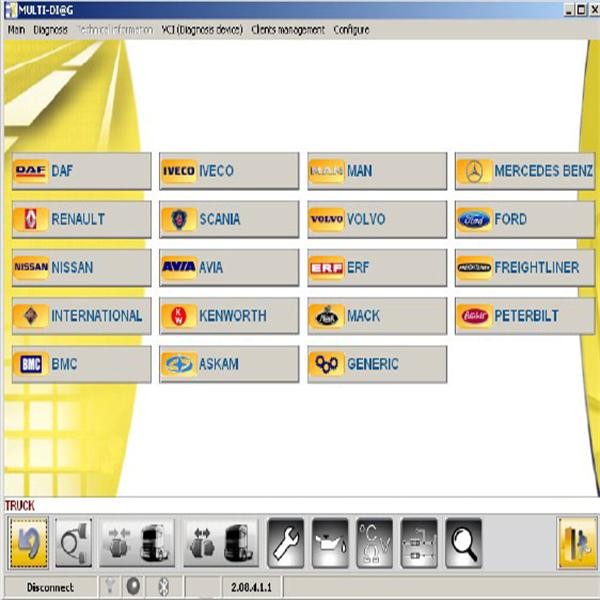

Multi-Diag Truck Heavy Duty Diagnostic Tool Currently
Supported Manufacturers
1.For ASTRA:
AD, HD7, HD8, HD8 Euro 5, Military, RD
2. For Mercedes
Actros, Atego, Axor, Econic, LK, MK,SK, U20, U300, U3000, U400, U4000,
U500, U5000, U20, Vario, Zetros
3. For MAN
F2000, F90, G90, L2000, LE, M2000, ME, TGA, TGL, TGM, TGS 2007-
4. For DAF
65CF, 75CF, 85CF, 95XF, CF65, CF65 IV, CF75, CF75 IV, CF85, CF85 IV, F45, F55, F65,
F75, F85, F95, LF45, LF45 IV, LF55, LF55 IV, XF105, XF95
5. For Volvo
F10, F12, FE 2006-, FH 2005-, FH12 1993-1997, FH 12 E98 1998-2001, FH 12 V2
2002-2005, FH 16 1993-1997, FH16 E98 1998-2001, FH 16 V2 2002-2005, FM7
1998-2001, FM9 V2 2002-2005, NH 12
6. For Renault
7. For AVIA
D100, D110, D120, D60, D75, D80, D90
8. For SCANIA
114,94, 94 OMNICITY, BN 113, K 113, K 124, K230 IB 2005-, K270 IB 2005-, K310 IB,
K310 IB 2005-, K340 EB, K340 IB, K380 EB, K420 EB, K420 IB, K470 EB, L 113, N 113,
N230 UB 2005-, N270 UB 2005-, N310 UB 2005-,
9. For Kenworth
CB500B, K100E -2003, K260 2006-, K360 2006-, KW45 2004-2006, KW55 2004-2006,
T170 2007-, T2000 1997-, T270 2007-, T300 Class 6 1994-, T300 Class 7 1994-, T370 2007-,
T400 1995-2003, T440 2008-, T450 -2003, T600 1995-2007, T660 2008-, T700 2008-, T800,
W900 1994-
10. For Peterbilt
210 2008-, 220 2008-, 320, 330 1995-, 335 2005-, 340 2007-, 357 -2007, 365 2008-, 367
2008-, 378 -2007, 379 -2007, 384 2008-, 385 1996-2007, 386 2006-, 387 2000-, 388 2008-,
389 2008-, 587
11. For Mack
11. For Freightliner
12. For Scania
13. For International
14. For IVECO
15. For ERF (ECS, ECT, ECX)
16. For FORD
17. For NISSAN(Atleon, Cabstar, OBD)
18. For BMC (518, 625, 628)
19. For ASKAM
20. For GENERIC
21. For Mercedes Busses
22. For Iveco busses
23. For Man Busses
24. For Renault busses
25. For Scania busses
26. For Volvo Busses

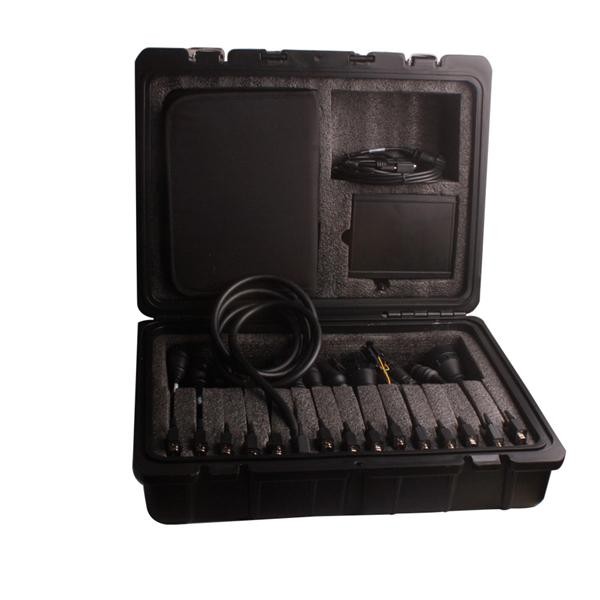

MULTI-DIAG Package List:

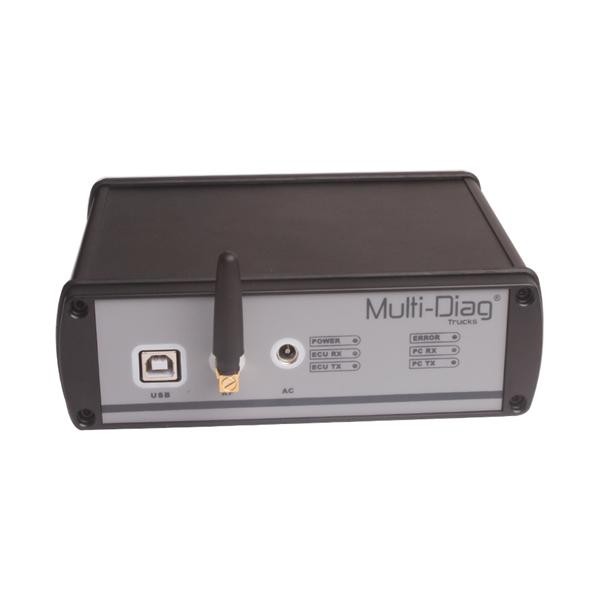

1pc x Multi-DiaG main unit(with Bluetooth antenna

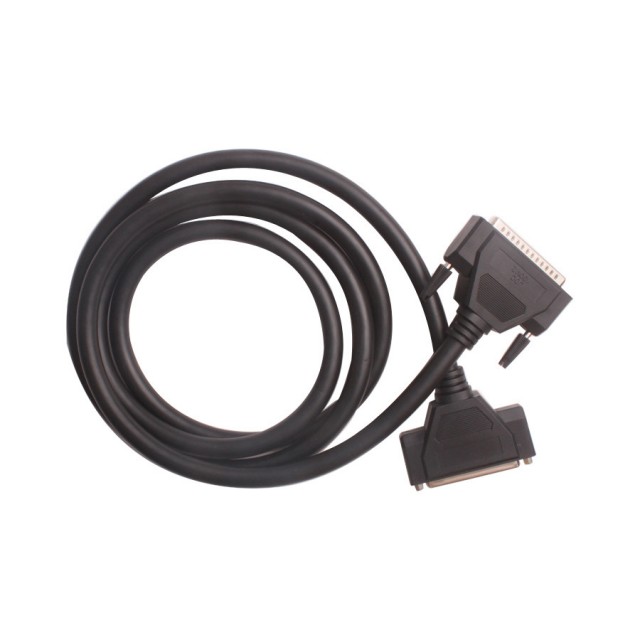

1pc x DB37 main cable
1pc x USB CABLE:3 METRE

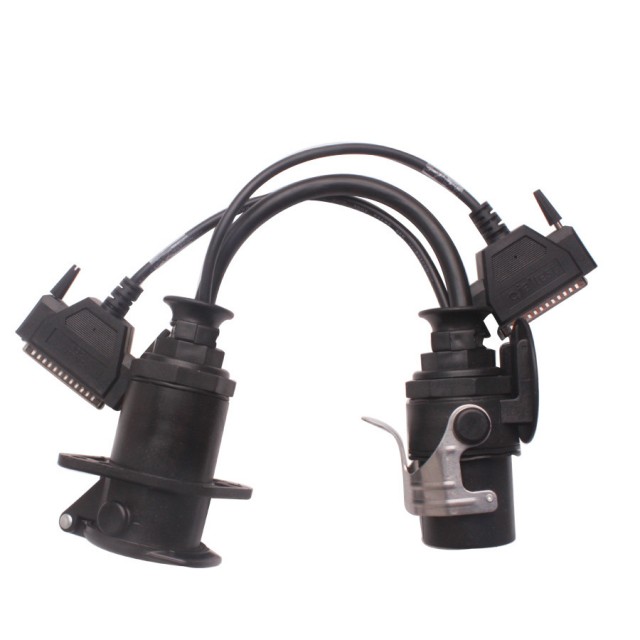

14pcs x DB37 TO VECHLE CABLE(TME3902810, TME3902812, TME3902813,
TME3902814,TME3902815, TME3902816, TME3902817, TME3902804,
TME3902805, TME3902806, TME3902807, TME3902808, TME3902809)
1pc x DB15 TO VEHICLE: TME3902760

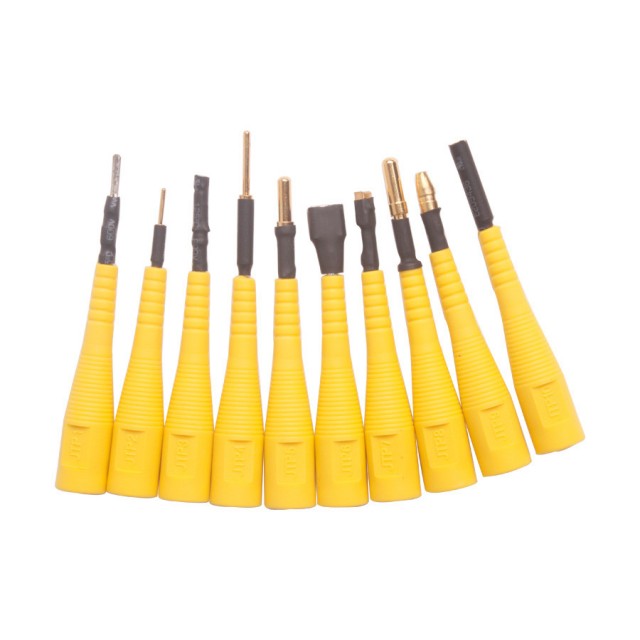

1pc x ADAPTOR AND CABLE BOX (Contain: Jumper Mainline, Battery Clip,
Cigarette Lighter Power, Jumper Head 20pc)
1pc x DVD Software
1pc x DB15 TO VEHICLE: TME3902760
