Aceasta interfata este model China si este folosita pentru diagnoza auto necesara Wabco semiremorci, trailere, autobuze si camioane. In kit-ul de diagnoza aveti incluse mufele adaptoare necesare scanarii, puteti accesa computerizat aproape toate functiile electronice, hidraulice, pneumatice. Modelul de China cuprinde doar cablurile prezente in poze.
Wabco Diagnostic Kit is a universal diagnostic tool designed for maintenance of trailers, trucks and buses. Wabco Diagnostic tool supports most popular and wanted diagnostic protocols for wider compatibility range. Wabco Diagnostic Kit comes with a full set of diagnostic software which allows you to connect to almost all necessary electronic, hydraulic and pneumatic systems or modules
WABCO DIAGNOSTIC KIT is A wide range of diagnostic hardware, and supply completes the System Diagnostics package. easy-to-use blink code plug, digital testers, conformity test unit, adapters and cables compatiblem, and a complete test bench. You can see below compatible cable conecteurs:

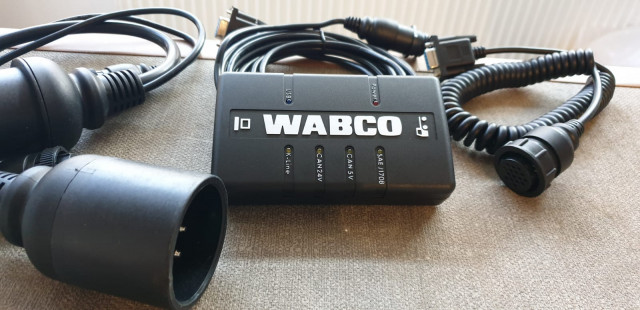

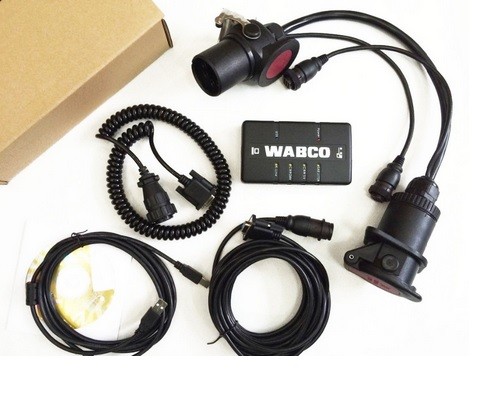

Wabco Diagnostic Kit
446 301 022 0 – WABCO Diagnostic Interface
446 300 329 2 – Trailer standard cable
446 300 360 0 – CAN adapter
446 300 361 0 – CAN adapter cable
446 612 010 0 – VCS I
446 615 010 0 – VCS II
449 672 030 0 – TEBS C / D
WABCO has programs for the use in WABCO.
The programs are:

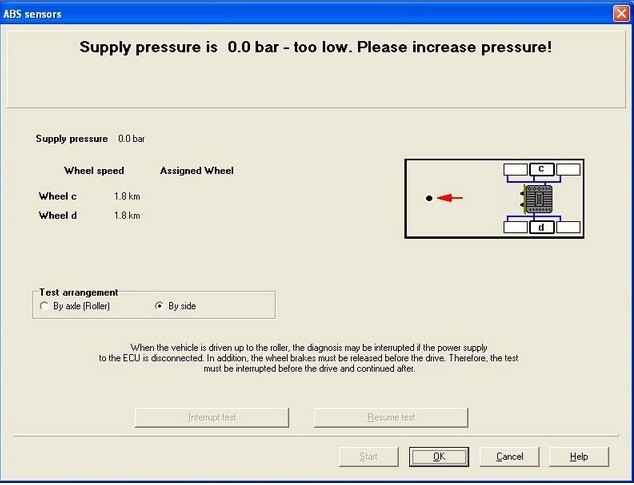

- anti-lock air brake system (ABS)

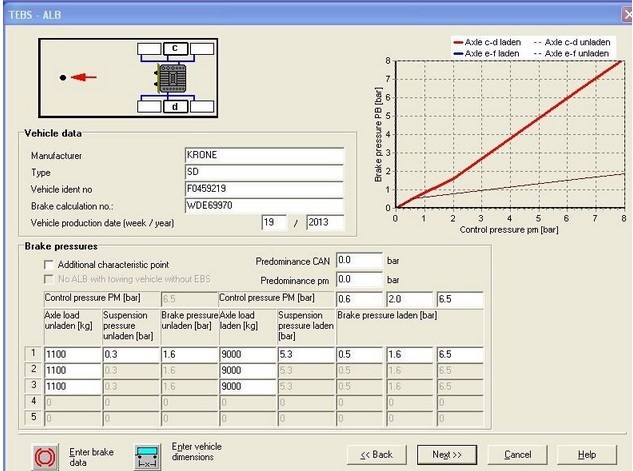

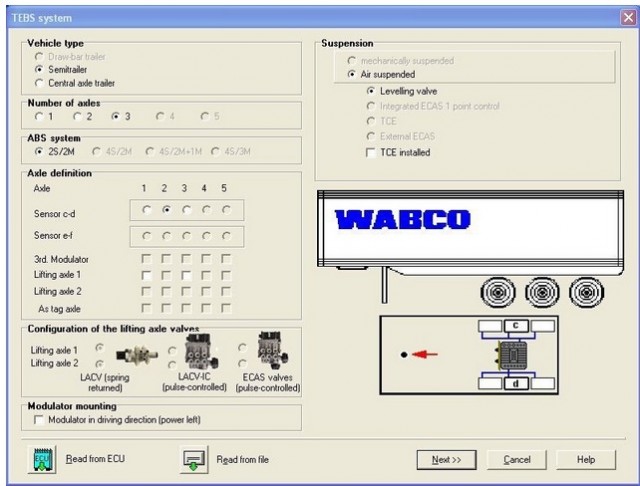

- electronically controlled braking system for commercial vehicles (EBS & TEBS-E)
- electronically controlled air suspension (ECAS)
These programs are effectively used in WABCO training sessions for a long time and they support imparting knowledge of commercial vehicle technology multimedia-based.
