Autel MaxiSys Elite can diagnose the more than 80 US, Asian and European vehicle coverage for codes, live data, actuation tests, adaptations, coding and ECU programming Displays live data in text.

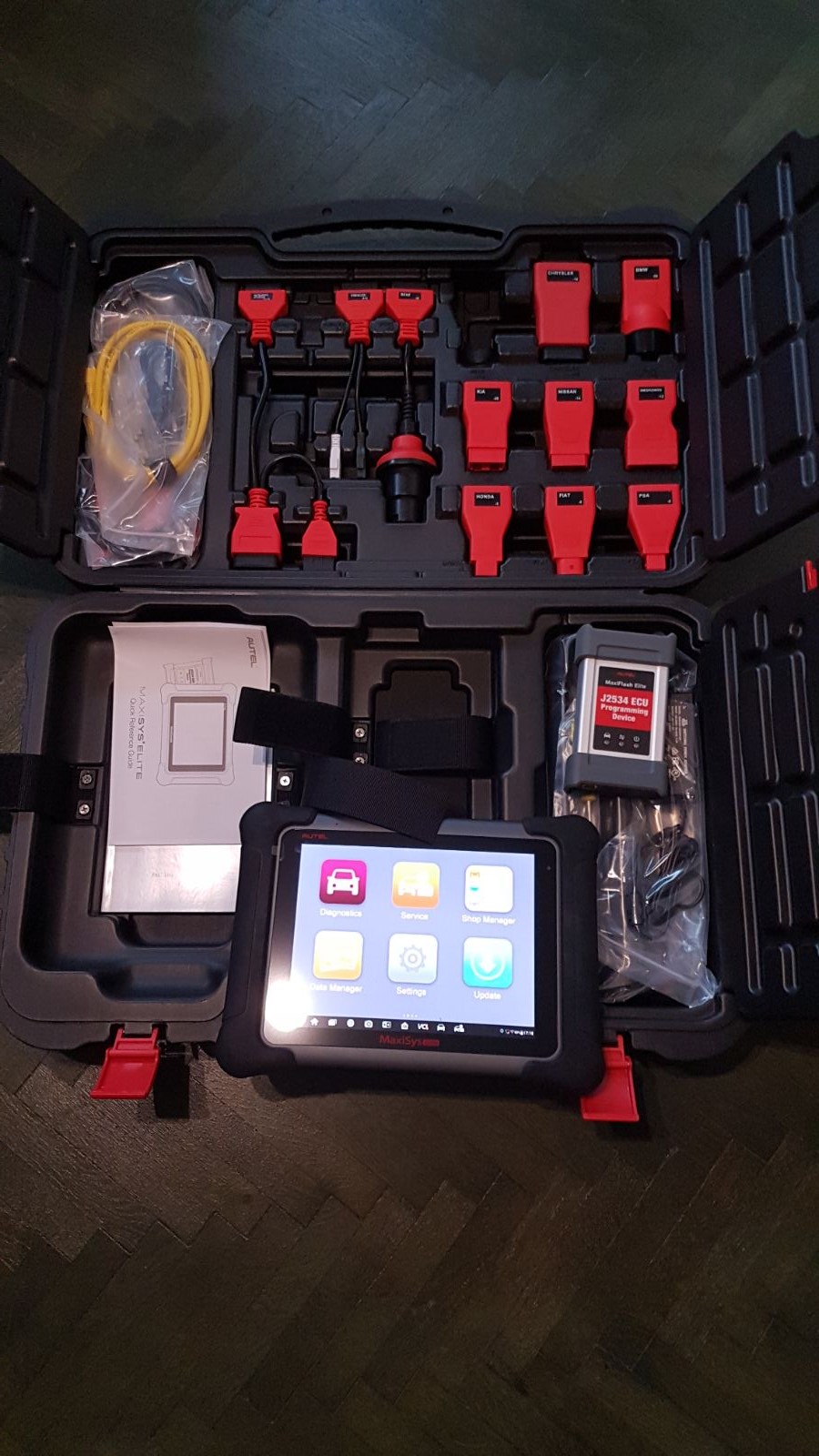

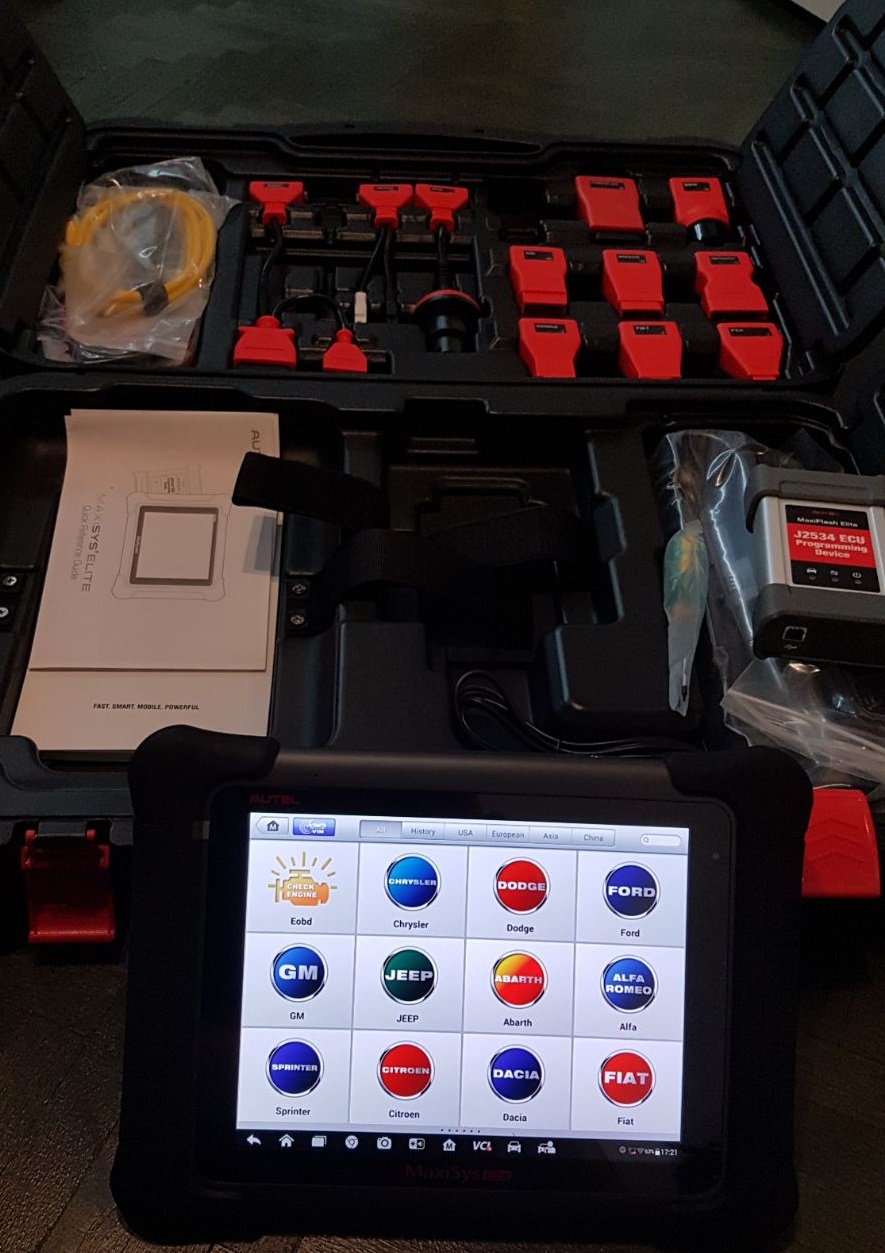

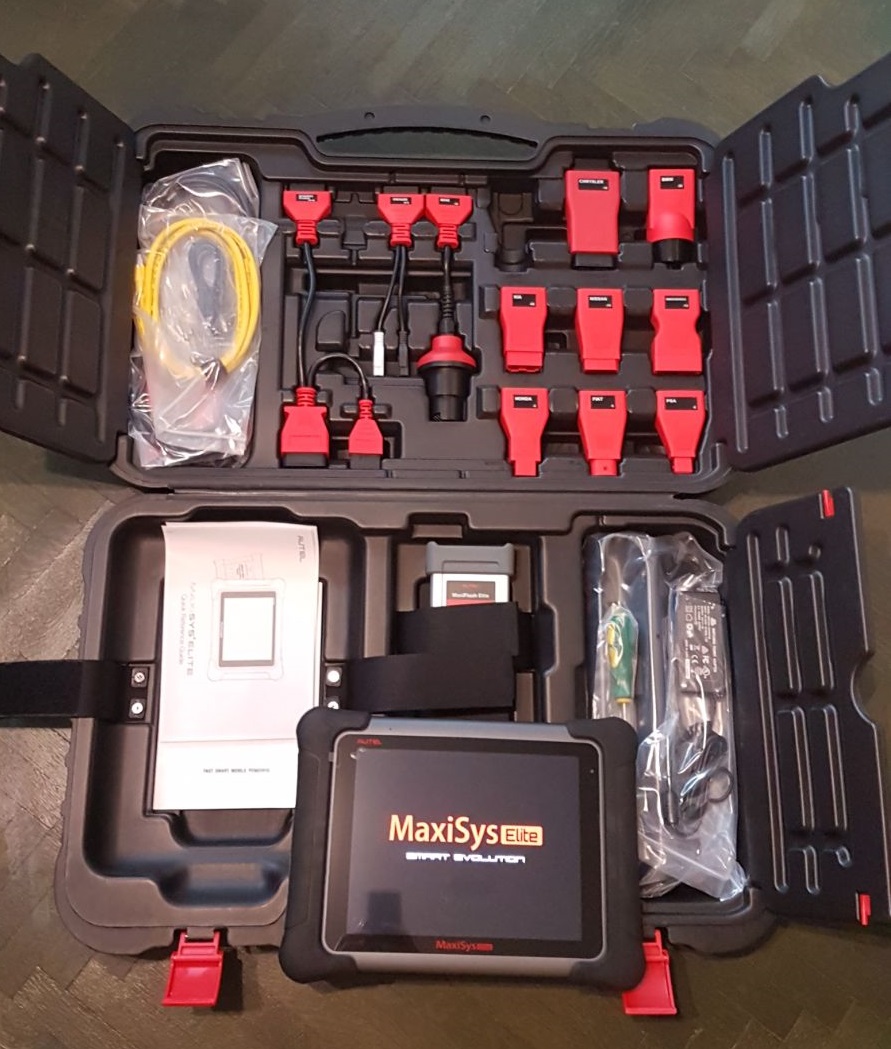

Latest AUTEL MaxiSys Elite with J2534 ECU Preprogramming Box
The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.
MaxiSys Elite Features:
1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
4. Automatic system and software updates with real-time push message notifications via internet
5. Instant remote control tech support anytime, anywhere
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing
9. Hardware running speed is twice than Maxysys MS908P.
MaxiSys Elite Specifications:
Version 2.1 3Mbs Bluetooth
RJ45 Ethernet Connection
3.0 USB (2.0 Compatible)
SD Card (Support up to 32GB)Camera Rear: 8.0 Megapixel, Autofocus with Flashlight
Front: 2.0 MegapixelSensors Ambient Light Sensor, G-sensorAudio Input/Output Microphone
3-Band 3.5 mm stereo/standard headset jackPower and Battery 3.7V/13600mAH Lithium-polymer battery
DC/12V/3A Power SupplyInput Voltage DC/12V/3APower Consumption Max 20WOperating Temperature -10 to +55°CStorage Temperature -20 to +70°CDimensions (W x H x D) 309 X 225 X 35 (mm)Weight 1.59 kgProtocols
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, FOR USAGM UART, UART Echo Byte Protocol,for Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V
