Descriere
Noul Kit de Diagnoza Auto Profesional LAUNCH X431 V+ SmartLink HD este configurat pentru gama 24V, vehicule de pasageri + cele comerciale, detine un an de actualizări gratuite (abonament software) si licenta nelimitata. Mărci de camioane acceptate: Mercedes, MAN, Volvo,Scania, Iveco, DAF, Renault și multe alte mărci europene, asiatice și americane de camioane ușoare, camioane grele, mașini de construcții, tractoare, autobuze, etc.
Kit-ul Launch X431 V+ Smartlink HD este format din tableta de diagnosticare Launch X431 V+ și interfața originala SmartLink C 2.0, upgrade la versiunea HDIII si este utilizabil pentru toata gama de autovehiculele de 24V. Este compatibil doar cu autovehicule comerciale de 24V: camioane, autobuze, utilaje de construcții, utilaje agricole, remorci, nave și alte tipuri de vehicule. Atentie !NU cuprinde in mod standard gama de turisme si autoutilitare de 12V ! Urmariti video mai jos:
LAUNCH X431 V+ SmarLink HD este un dispozitiv inteligent de diagnosticare auto profesional avand in componenta tableta thoughbook Launch X431 de 10,1 inci, dezvoltata pe baza sistemului Android 10.0 si care folosește un procesor de înaltă eficiență cu 4 nuclee la 1,8 GHz, o memorie de stocare mare de 4 GB RAM + 64 GB ROM și este echipata cu o baterie de înaltă rezistență pentru a funcționa mai rapid, mai stabil și a dura mai mult.
Noul conector de diagnosticare SmartLink C 2.0 standard face funcția de diagnosticare mai rapida si mai puternică. Produsul acceptă diagnosticarea completă a defecțiunilor sistemului și are funcții precum citirea codurilor, ștergerea codurilor, citirea fluxului de date, funcții speciale și testarea parametrilor auto in sarcina. X-431 V+ SmarLink HD acoperă software de diagnosticare pentru motoare gen: Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai și alte motoare. Acceptă software pentru camioane, autobuze, utilaje de construcții, utilaje agricole, remorci, nave și alte tipuri de vehicule. SmartLink C 2.0 este mai performat decat HDIII și este configurat pentru vehicule de pasageri și comerciale, oferind în principal suport pentru vehicule comerciale. Viteza de transmisie este mai rapidă, iar transmisia este mai stabilă; interfața vizuală de operare îl face mai convenabil; Compatibil cu vehicule comerciale, autoturisme, modele cu energie nouă și alte modele; suportă diagnosticarea la distanță.
English Full Product Description
2. Launch The SmartLink C 2.0 is more powerful and it is configured for passenger and commercial vehicles.
3. One Year of Free Updates (Software Subscription ).

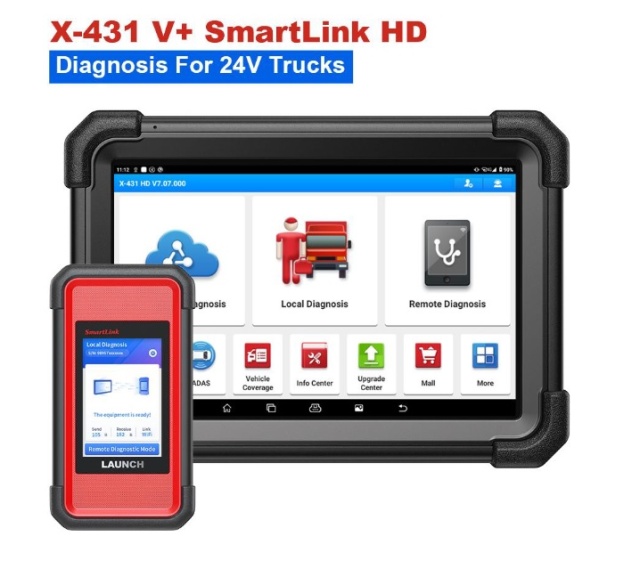

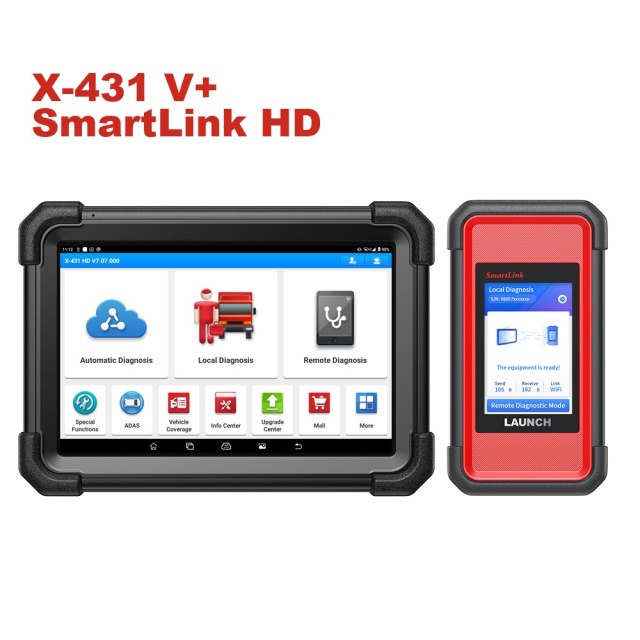

Launch X-431 V+ SmartLink HD Truck Diagnostic Tool
X431 V+ SmartLink HD Introduction:
X-431 V+ SmarLink HD is a 10.1-inch smart car diagnostic device developed based on Android 10.0 system. It uses a 1.8Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery to run faster, more stably, and last longer. The standard new SmartLink C 2.0 diagnostic connector makes the diagnostic function more powerful. The product supports full system fault diagnosis, and has functions such as code reading, code clearing, data stream reading, special functions, and action testing.
X-431 V+ SmarLink HD covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. It supports software for trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicles.
The SmartLink C 2.0 is more powerful and it is configured for passenger and commercial vehicles, mainly supporting commercial vehicles. The transmission speed is faster and the transmission is more stable; the visual operation interface makes it more convenient; it supports commercial vehicles, passenger cars, new energy and other models; it supports super remote diagnosis.
X431 V+ SmartLink HD Features:
1. Access to the vehicle system faster throughout modular design.
2. Support X-431 Fix database to fix the problems.
3. The software is available to purchase separately on the Mall at any time.
4. Brand new tablet integrated with comprehensive heavy-duty coverage.
5. Empower you to diagnose light, medium & heavy-duty vehicles.
6. Flexible options for USB, Bluetooth and Wi-Fi connection.
7. Basic functions include Read & clear DTC, VIN scan, wireless connection, diagnostic record review, bi-directional test, etc.
8. Support Smartlink Remote Diagnosis.
9. Optional ADAS HD calibration increases more revenue.
10. 21 Service Functions: DPF Regen, Parameter Setting, Cylinder Deactivation Compression, Oil Maintenance Reset, Injector Coding, Speed Limit Adjustment, Idle Speed Adjustment, Fan Calibration, Remote Throttle, Urea Drive(DEF), Deep Clearing of DTCs, Flash Data Conversion, Brake Reset, Transmission Replacement, Nox Sensor Reset, Aftertreatment, Immobilizer, Suspension, Odometer, Language Change, PTO Change
(X431 PRO3 LINK HD scan tool supports the DPF Regen feature in a graphical format for almost all commercial vehicles, click here to review)
11. Toolbox for multiple add-on modules, including Oscilloscope, Sensorbox, Battery Tester, Videoscope and Wi-Fi printer, etc.
12.Newly updated the software for selective Heavy-Duty and Commercial Vehicles (require SmartLink C+ truck software packages and adapters):
|
Software
|
Version
|
Update Info
|
|
HD_International
|
V10.93
|
Optimized the structure of the software and the structure of the manually select.
|
|
HD_Autocar
|
V10.11
|
Optimized the structure of the software and the structure of the manually select.
|
|
HD_Capacity
|
V10.11
|
Optimized the structure of the software and the structure of the manually select.
|
|
HD_Sterling
|
V10.82
|
Optimized the structure of the software and the structure of the manually select.
|
|
HD_ThomasBuilt
|
V10.11
|
Optimized the structure of the software and the structure of the manually select.
|
|
HD_Western_Star
|
V10.82
|
Added quick entry for commonly used special functions and optimized the structure of the manually select.
|
|
HD_Fast
|
V10.30
|
Systems of F6A75 Series, FC7A180&280 Series, FC6A145R Series, 2E Series, 4E Series, 6E Series, FHEV_C6JZ Series, FHEV_C8JZ Series are added.
|
|
HD_Hino
|
V18.80
|
Added special functions for Hino body control system, front radar (KNORR) system, front radar system, brake system, and drive support system; optimized version information and test interface.
|
|
HD_Bosch
|
V16.65
|
Added the Foton P2003 EDC17C81, JMC P2227 MD1CS089,
YUCHAI P2061 MD1CC878, YUCHAI P2084 MD1CC878, SANY P2384 MD1CE100, FUTIAN P2256 MD1CS089, QUANCHAI P2080 MD1CC878, QUANCHAI P2072 EDC17C63, QUANCHAI P1765 EDC17C63+DPF, and XINCHAI P1838 EDC17CV54 systems. Optimized the DPF regeneration, Cylinder cutout function. |
These two features enhance the diagnostic experience and provide real-time visualizations that make your work easier and more efficient.

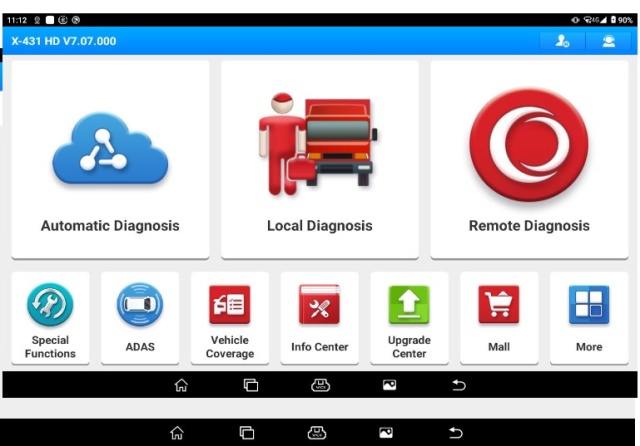

X431 V+ SmartLink HD Functions:
1. Automatic diagnosis
2. Local diagnosis
3. Remote diagnosis
4. Special functions
5. ADAS
6. Vehicle coverage
7. Info center
8. Upgrade center
9. Mall
10. Setting
11. Feedback

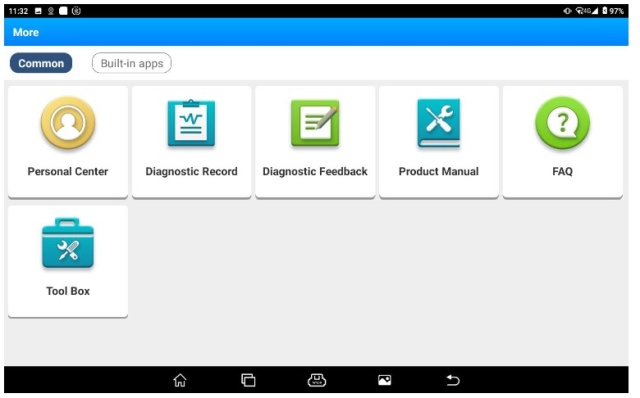

12. Toolbox and more...

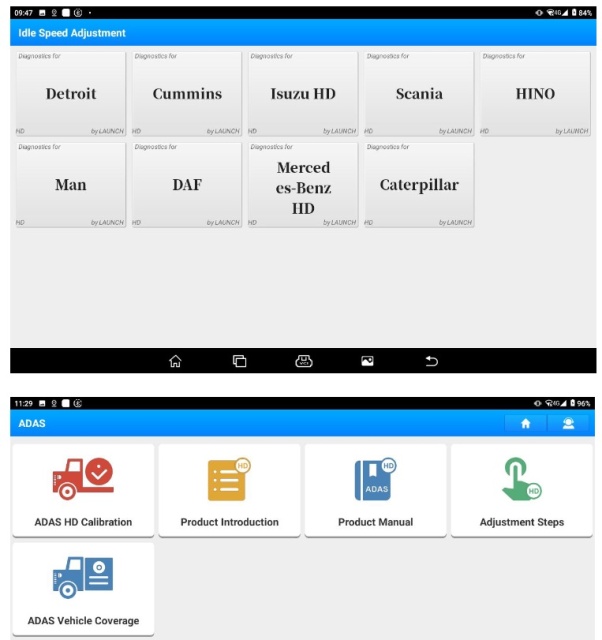

Menu Function Display:

The diagnostic software in this function is classified by brand and vehicle type to solve the previous menu confusion problem. Technicians can quickly select the diagnostic software they need through different menus to improve work efficiency.

Supports diverse data stream display modes and user-defined standard data streams.

The remote diagnosis function can realize real-time communication between equipment and equipment or equipment and computer to complete vehicle remote diagnosis. It becomes a reality for repair technicians to diagnose vehicles thousands of miles apart.


It supports 6 special functions commonly used in most car models, such as DPF, parameter setting, cylinder cutoff test, maintenance reset, injector programming, speed limit adjustment, etc., and is continuously updated.

ADAS

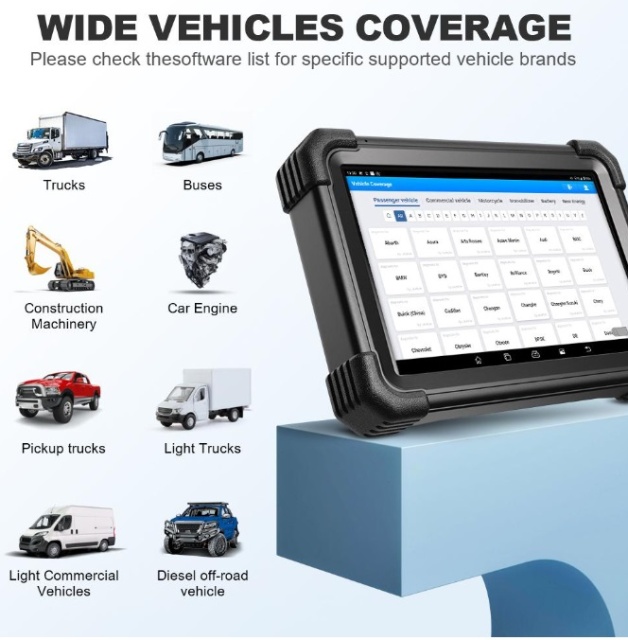

It displays the list of testable models with current configuration. You can quickly find the corresponding software through the initial letter search and text input search functions. View the diagnostic software version, year, and system data at the same time.

The info center contains equipment information, overall information, maintenance data and other information.


It supports one-click upgrade of operating system, client, vehicle model software and firmware.



The mall includes software store, service upgrade, other goods, etc.


Feedback
When users encounter vehicle models and functional abnormalities under special circumstances during use, they can provide their opinions to Launch through diagnostic feedback, and specialized technical personnel will track and deal with the problem.

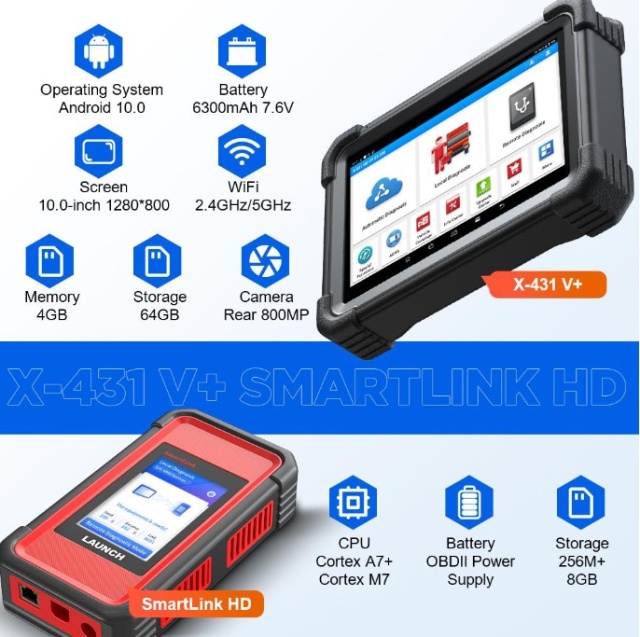

X-431 V+ Smartlink HD (Tablet)
OS: Android 10.0
DISPLAY: 10.1", 1280*800
CPU: 2.0GHz, Quad-Core
RAM: 4GB
STORAGE: 64GB
BATTERY: 47.88Wh(7.6V, 6300mAh)
CAMERA: Rear 8MP
VCI CONNECTION: 2.4GHz/5GHz
DIMENSION: 274*190.5*40.5(mm)
INTERFACE: TYPE A*1 & TYPE C*1

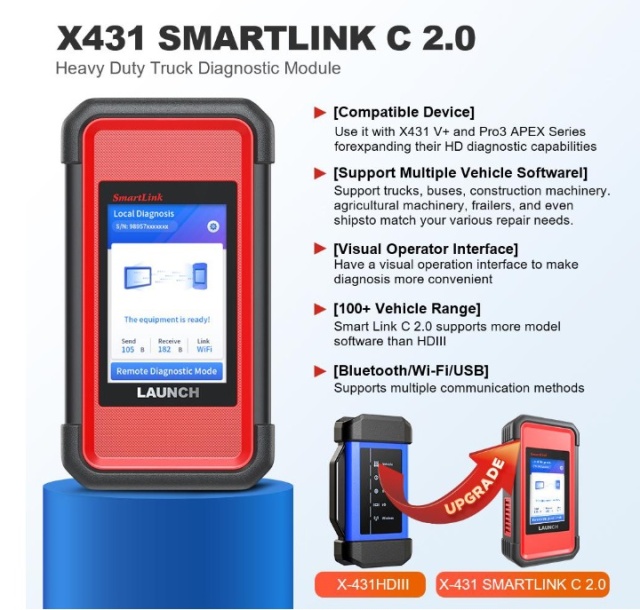

SmartLink C V2.0
DISPLAY: 3.5", 320*480
RAM: 256MB
STORAGE: 8GB
WIFI: 2.4GHz/5GHz
WORKING VOLTAGE: 9V DC~36V DC
COMMUNICATION: WIFI & Bluetooth & Ethernet
DIMENSION: 200*110*47(mm)

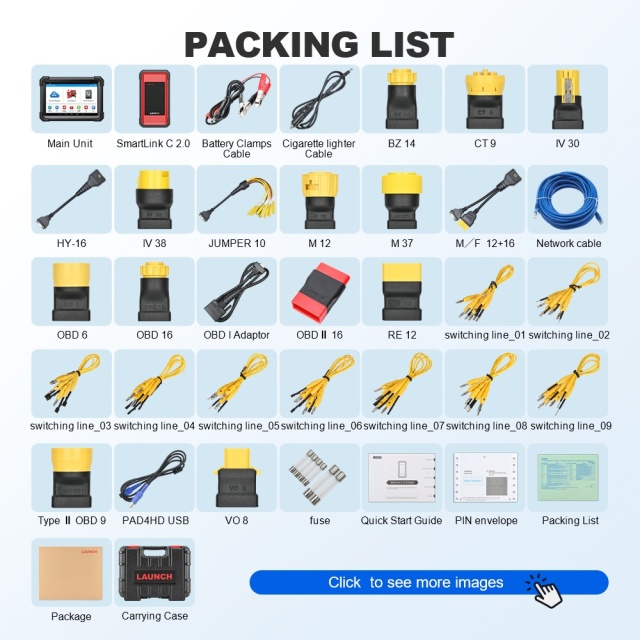

1pc x Launch X-431 V+ SmartLink HD tablet
1pc x SmartLink C 2.0 connector
1pc x Type II OBD-9 connector
1pc x IVECO 36 connector
1pc x OBD16 connector
1pc x OBD 6 connector
1pc x CAT 9 connector
1pc x BENZ 14 connector
1pc x RENAULT 12 connector
1pc x VOLVO 8 connector
1pc x MAN 37 connector
1pc x MAN 12 connector
1pc x IVECO 38 connector
1pc x ISUZU 20 connector
1pc x Jumpers
1pc x Test cable
1pc x OBD main cable
1pc x Power cable clips
1pc x Lighter
1pc x Jumper 10
1pc x HY-16 cable
1pc x M/F 12+16 cable
2pcs x USB cables
1pc x Standard power adapter
6pcs x Fuses
2pcs x Boxes
1pc x User manual
1pc x Password letter
9pcs x Jumpers
