PS2 Heavy Duty Scanner - Tester profesional pentru camioane versiunea 2018

Descriere

Este un tester multimarca profesional pentru camioane cu dimensiuni reduse, ecran tactil, design simplu si usor de manevrat venit recent pe piata auto de profil, totul este usor si intuitiv de folosit. PS2 suporta toate protocoalele si toate modelele pentru OBD II, este upgradat direct pe internet si vine echipat cu modul wireless nemaifiind necesara legatura directa interfata - masina. Nu necesita laptop sau calculator de conectare.

In the compatible aspect of data agreement, PS2 comprehensively supports all protocols and all modes for the OBD II. The built-in CAN BUS chip supports all CAN BUS agreements. The forward-looking design of PS2 meets the need not only for the present but also for the future automobile main-line examination. The drivers of diagnostic module can be updated through the internet. The formidable compatibility reduces the equipped adapter. PS2 is easy to handle and users will experience the unique design from our R&D team.
       We also provides wireless communication version of PS2. The servicemen can sits in the office to carry on the functional test. The VAG connector could meet the various requests from customers. All test procedures places on a high-capacity SD card which facilitates the updating procedure. The mulit-language edition will satisfy the demands from our customer around the world.
As a result of massive field test, PS2 becomes a matured and integrated product. Excellence is our motto. We make every effort to develop and to innovate our product which enables PS2 to become an reliable automobile diagnostic equipment. The speedy test, the accuracy and the user-friendly design of SP2 help us to enjoy the support of all customers!
       PS2 is a high-tech and professional automobile diagnostic tool. Please follow the instruction to use the product. If you have any problems or questions related to the operation, please contact post-sale Technical service department for further instruction.

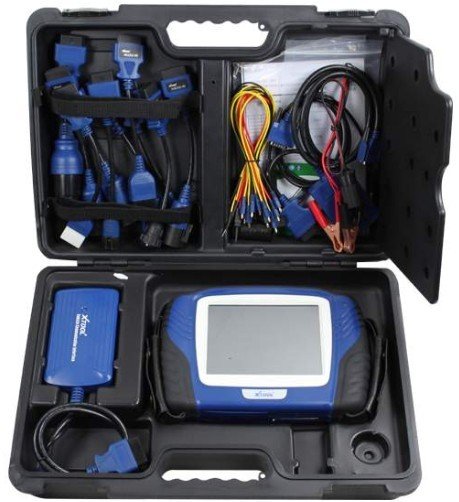

1.Outward appearance, the obverse side and the reverse side:

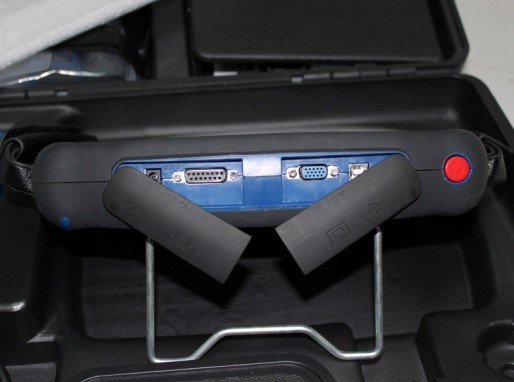

2.the upward-side connection of the mainframe:

Power switch: Uses for starting and closing of main engine
USB connection: Uses this connection to carry on the data synchronization with PC.
VGA connection: Uses this connection to link the external monitor (800×600 pixels)
Main test connection: Uses the testing line to carry on the vehicles diagnosis.
power connection: Uses for the exterior power supply
touching pen: Uses in clicking on the touching-screen

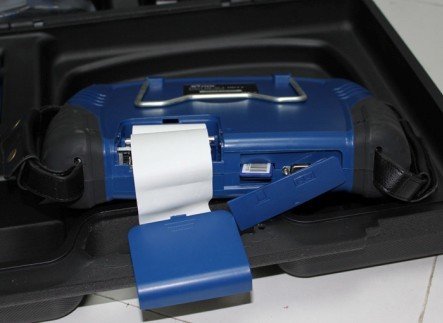

 3.the lower-side connection of the mainframe :

serial port: Uses in the main body debugging.
SD card slot: uses for SD card
paper outlet: use for mini printer

4. functions of VCI diagnostic box:

The box is bridging the PS2 mainframe and the automobile diagnostic base. It is called lower position machine. This diagnostic box has two connections, the DB15 connection and the OBD II connection. The main testing line connects the PS2 mainframe with the DB15 adapter. The OBDII connection could link with the testing adapter (PS2 with OBDII diagnostic base could directly link with automobile connection base)
Because the blue-teeth communication module is installed in the VCI diagnosis box, the PS2 mainframe could proceed the diagnosis without the main testing line. The “on-line diagnosis” should be changed to the “wireless diagnosis” mode on the menu.serial port: Uses in the main body debugging.
SD card slot: uses for SD cardPower switch: Uses for starting and closing of main engine
USB connection: Uses this connection to carry on the data synchronization with PC.
VGA connection: Uses this connection to link the external monitor (800*600 pixels)
Main test connection: Uses the testing line to carry on the vehicles diagnosis.
power connection: Uses for the exterior power supply
touching pen: Uses in clicking on the touching-screen.

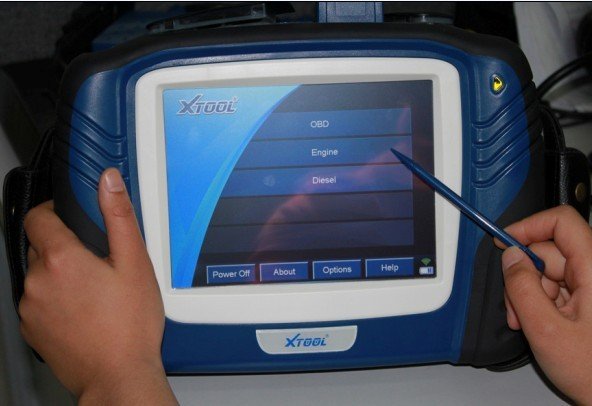

5. HOW TO USE PS2 ?

PS2 MANUAL DE UTILIZARE, FORMAT PDF

PS2-UPDATE-INSTRUCTION-PDF

PS2-HEAVY-DUTY-CAR-LIST-v5.2-2011-04-21.PDF

Atentie: Acest tester original necesita la data comenzii efectuarea unei platii in avans de 15% din valoarea prezenta in factura proforma emisa de firma noastra ! Avansul se poate platii prin transfer bancar, depunere cash, paypal, card de credit.
