Descriere
Tachograful este un dispozitiv ce masoara si inregistreaza viteza si distanta parcursa de o masina. Informatiile sunt inregistrate in forma de grafic pe un disc de hartie. Noile tachografe inregistreaza aceste date pe memoria interna si de asemenea pe un card al soferului. Programatorul acesta calibreaza si programeaza toate tachografele atat cele analogice cat si cele digitale.
Modele suportate:
- Analogice: KTO 1314/1318, Motometer EGK100, FTCO 1319, MTCO 1324/1390, TSU 1391, VR2400.
- Digitale: DTCO 1381 (DTCO 2.1 activ), SE5000 (Exakt Duo), SmarTach, EFAS-4
Un card de workshop e necesar pentru a calibra tachografele digitale.
Functiile lui CD400:
- Determina modul de masurare
- Determina masuratori la KTCO 1314, KTCO 1318 si la FTCO13194
- Programeaza parametrii
- Activeaza sau dezactiveaza IMS (Independent Motion Signal)
- Activeaza sau dezactiveaza counterul VDO
- Reseteaza si ajusteaza kilometrajul - in mile sau in km.
- Simuleaza viteza si poate testa automat diagramele
- Citeste codurile de eroare si le sterge ( la tachografele digitale )
- Imperecheaza senzori.
- Testeaza ceasul
Avantajele lui CD400:
- Nu este nevoie de conexiune la reteaua de curent, nici de baterie, acesta se alimenteaza direct de la tachograf
- Dimensiuni compacte fiind cel mai mic tester de tachograph de pe piata.
- Este usor de folosit.
- Detecteaza automat modelul de tachograf.
- Unicul tester ce poate reseta kilometrajul si poate schimba setarile in VR2400
- Programeaza memoria flash, usor de facut update de soft folosind un PC
Specificatii tehnice:
- Display FSTF LCD - 100*32 pixeli.
- Lumina de fundal alba
- Dimensiuni: 150*100*45 mm
- Sursa curent: intre 9 si 30 VDC, 12mA
- Temperaturi de operare intre -20 si +70 °C
- Greutate: 155 de grame

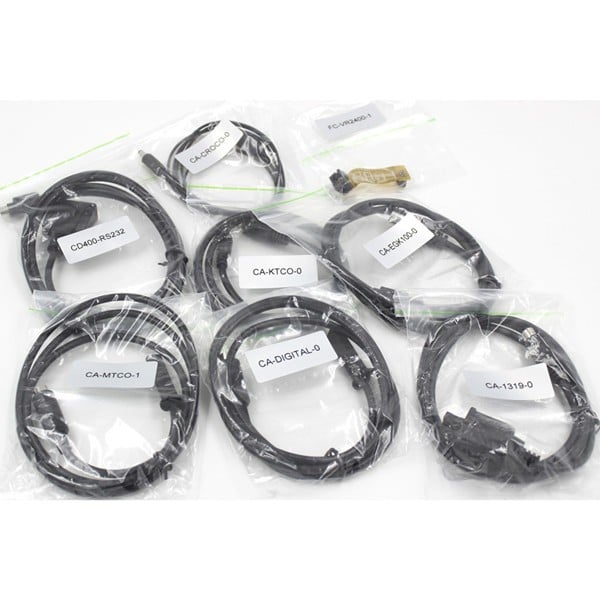

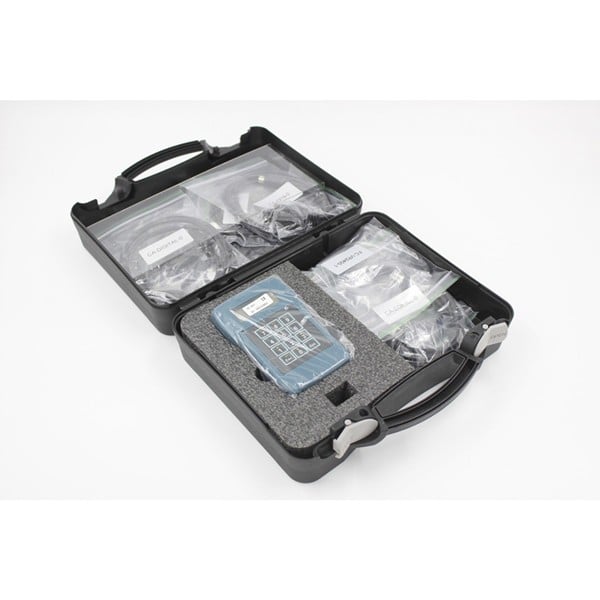

Pachetul include:
- Programatorul CD400
- Cablu pentru 1319
- Cablu pentru 13XX/1318, V.Root 8400
- Cablu pentru EGK 100
- Cablu pentru 1324
- Cablu pentru V.Root 2400
- Cablu pentru CA-RS232-1
- Cablu pentru Tacho Digital
- Manual

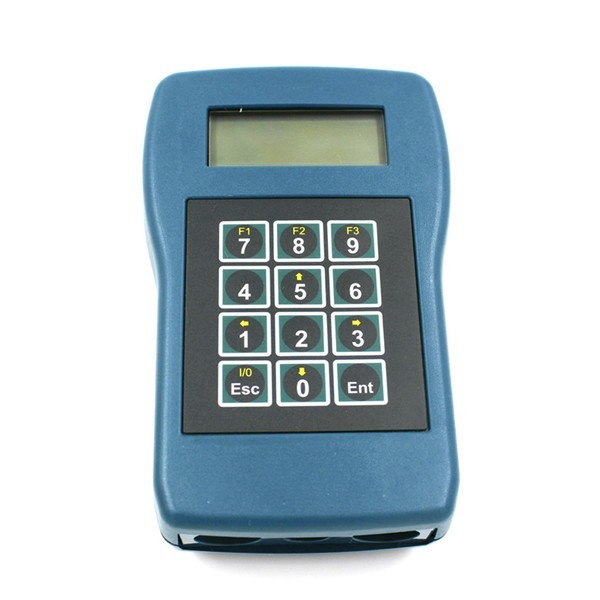

Tachograph programmer (Tacho) CD400 is designed for verification, calibration and configuration of control devices (tachograph) when installed on vehicles. The device allows you to define the W figure determination on measuring track or rolling road, K figure measure, can be used as speed simulator for the tachograph when checking the speedometer and odometer.
The most reasons that users prefer to Tachograph programmer:
No power connection nor battery charging required, the only tester powered by the tachograph itself.
Compact size the smallest tachograph tester on the market, and weight only 1.5KG
User friendly, clear 4 lines menus, no training required
Automatic tachograph model detection on power on
Double accuracy of the W factor measure on track by detecting half pulses
The only tester being able to reset the odometer and change the sender type on the VR2400
Flash program memory, easy software upgrade using a serial port or USB serial adapter on any PC.
