Noul model de interfata Ediag Plus este unul dintre cele mai performante dispozitiv easydiag create pana in prezent, vandut de catre compania Kingbolen in colaborare cu producatorii Launch/Thinkdiag, acest aparat exceleaza atat hardware cat si software. Prin introducerea protocolului Canfd au crescut numarul de masini accesate, rapiditatea interfetei, precum si viteza de transfer date in timp real. Softul oferit este cel original, aveti detalii in colet despre aplicatia necesara a fi descarcata, user si parola de acces, functioneaza atat pe android cat si pe ios. Producatorul ofera standard gratuit acces update si licenta gratuite pentru 12 luni de la data activarii, ulterior fiind posibila plata subscriptiei cu cardul in shop sau prin contactarea dealerilor oficiali.
Cititi cu atentie descrierea produsului pentru a verifica daca e produsul potrivit pentru dumneavostra !
Acest produs NU se accepta retur dupa desigilare si/sau are softul activat pe numele dvs personal !
KINGBOLEN EDIAG PLUS Full system OBDII Code Reader with 15 reset function for Android/IOS phone with 1 Year software Free Update Supports CAN FD protocol ECU CODING ACTIVE TEST
Same function as thinkcar Thinkdiag 2
KINGBOLEN Ediag Plus Language :
English, ltalian, French, Spanish, Portuguese, German, Turkish, Polish, Japanese, Russian, Greek, Chinese
KINGBOLEN Ediag Plus is the update version of Ediag !!!
KINGBOLEN EDIAG PLUS supports CANFD protocol , supports more cars .
( Note : this is the CANFD protocol supports cars , Ediag Plus also supports other brands cars , like for bmw , for ford , for vw etc , there has the detailed car list in the following description , you can go to check )
Ediag Plus automotive OBD2 scanner is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
Ediag Plus is with All software 1 year free Update ( including All Vechicles Diagnostic Software + Maintenance software ) !
After 1 year , it will takes about USD159.99 to Subscribe the update .
KINGBOLEN Ediag Plus is widely used , it can for car owner , Automotive service technician, Car Shop , Small garge etc
Ediag Plus is with Powerful and Competitive Functions
The same comprehensive functions as thousands of dollars valued diagnostic tool, but in a much lower price Diagnostic Functions
Ediag Plus is a smart Bluetooth diagnostic tool for DIYers and car owners, which is extremely close to professional diagnostic tools. Besides the full OBDII function, Ediag Plus supports the vehicle's full system diagnostics to help you know every module in the car. Goodbye to normal OBDII dongle!We strive to minimize the price of Ediag Plus to let all car owners test the full system of the vehicle, much more than the OBDII.
Ediag Plus supports Active Tester ( Bi-Direction Control ) and ECU Coding , the two function are supported in Launch x431 devices , like x431 v + etc , Autel maxisys like ms908 etc . so it is very very very powerful , so worth to have one !
ECU Coding Function :
The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.
Active Test &Bi-directional control Function :
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
Ediag Plus is an Automotive Diagnostic Device same like easydiag. it support full systems diagnsis for the car ,and 15 kinds of reset functions.it including kinds of car software .you can delete car errors codes and reset the system if you have the Ediag Plus.
Ediag Plus will be a $3000 level professional scan tool.
Ediag Plus is perfect to use with our unique App. Easy and convenient, anytime and anywhere. Comprehensive functions include diagnostic module, ThinkStore module, ThinkMoments module, Me module, etc
15 maintenance functions to meet the maintenance vehicle repair and after-sales maintenance.
1.Oil Reset Service
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset themileage or driving time to zero after the maintenance, so the maintenance light will go out and the systemwill start a new maintenance cycle.
2.Steering Angle Calibration
To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steeringgearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recoveringcar body, you must reset the steering angle.
3.Electronic Parking Brake Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.
4.Battery Register & Battery Maintenance
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer,ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.
6.Electronic Throttle Position Reset & Learn
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.
7.Diesel Particulate Filter (DPF) Regeneration
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuouscombustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reducePM ignition combustion) to stabilize the filter performance.
8.Tire Pressure Monitor System Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.
10.Anti-theft ( IMMO ) Matching
To prevent the car being used by unauthorized keys, the anti-theft key matching function must beperformed so that the immobilizer control system on the car identifies and authorizes remote control keysto normally use the car. When the ignition switch key, ignition switch, combined instrument panel,ECu,BCM, or remote control battery is replaced, anti-theft key matching must be performed.
11.Injector matching MaEET
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identifyinjectors to accurately control fuel injection.
12.Air Suspension Reset
This function can adjust the height of the body. When replacing the body height sensor in the airsuspension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.
13. Gearbox /Transimission Reset
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensateaccording to the driving conditions so as to achieve more comfortable and better shift quality.
This function can set the sunroof lock off, closed when it rains,sliding / tilting sunroof memory function,temperature threshold outside the car etc.
15.AFS Reset (EGR)
This feature is used to initialize the adaptive headlamp system.According to the ambient light intensity, theadaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjustthe headlamp lighting angle while monitoring the vehicle speed and body posture.
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
Note : These special function NOT for all car models, if you are confused, Please send your car brand, model and release year to seller to check it for you .
Ediag Plus Full system Diagnosis :
Ediag Plus can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions etc;
To diagnose Brake Systemif you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
To diagnose Emission Systemif the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
To diagnose Fuel systemif vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
To diagnose Transmissionif your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
To diagnose Wiper Systemif you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
To diagnose Light Systemif you see rapid signal blinking or dimming lights.
And many more ...
Ediag Plus Supports Full OBD2 Diagnostic Functions :
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

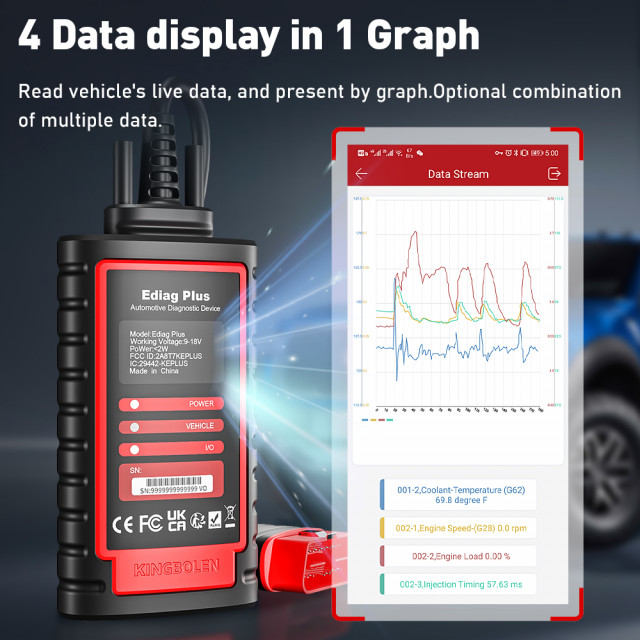

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

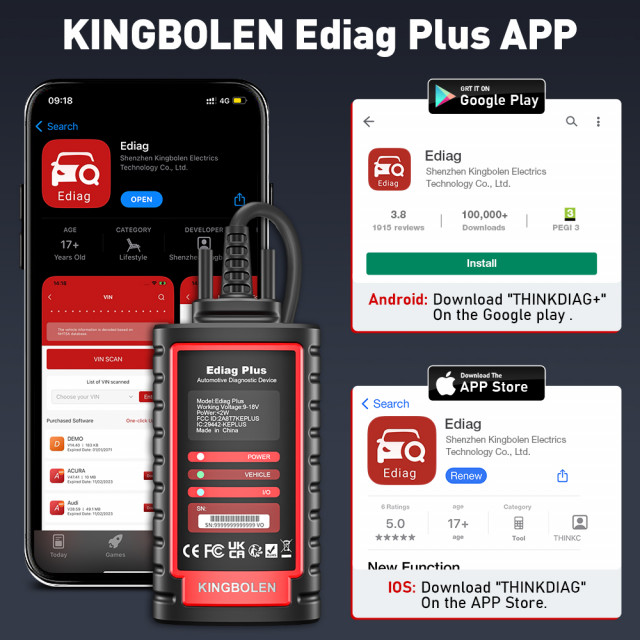

Ediag Plus Work on Android and IOS
You only need to install the APP on your phone or tablet to use it. Ediag Plus can not only support Android system, but also IOS system.
Ediag cover up to 115 major vehicle
Cover 115 Brands, and Counting
For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:
DEMO, For ABARTH, For ACURA, For ALTO, For AUSTFORD,For BEILV,For BQww, For BQZZ, For BUICK, For CADILLAC, For CHANGANFORD, For CHEVROLET, For CHRYSLER, For DODGE, For JEEP, For CITROEN, For Citroen(Iran), For DACIA, For DAIHATSu, For DFHONDA, For DODGE, For EUROFORD, For FIAT, For ABARTH, For LANCIA, For ROMEO, For FORDUSA, For FORDEURO, For LINCOLN, For CHANGANFORD, For FUKANG, For FUQI, For GM(Brasilia), For GM, For BUICK, For CADILLAC, For CHEVROLETGM, For BUICK, For CADILLAC, For CHEVROLET, For GZHONDA, For HANGTIANMIT_TY, For HBQc, For HONDA, For ACURA, For DFHONDA, For GZHONDA, For HUAYANG, For HUIZHONG, For HYUNDAIH, For IRKIA, For JEEP, For KIA, For KOREAKIA, For KOREAKIA, For KOREAKIA, For LANCIA, For LEXUS, For LINCOLN, For MITSUBISHI, For NJFIAT, For PORSCHE, For RENAULT, For DACIA, For RENAULTSAMSUNG, For ROMEO, For TJTOYOTA, ForTOYOTA, For LEXUS, For TJTOYO, For WEILI, For YONGYUAN, For YOUNGLOTUS, For YQEF, For ZHONGSHUN, For AUDI, For BENGLEY, For BMW, For MINI, For BMWHC, For ROLLSROYCE, For BUGATTI, For CHBUICK, For CHCADILLAC, For CHCHEVROLET, For DFNISSAN, For DFPEUGEOT, For GMSA, For HCBMw, For INDONESIASUZUKI, For lNFINITI, For ISUZUJP, For ISUZUTL, For JAGUAR, For LAMBORGHINI, For LANDROVER, For JAGUAR, For LYNKCo, For MAYBACH, For MAZDA, For YQMAZDA, For MERCEDES, For MAYBACH, For MINI, For NISSAN, For INFINITI, For DFNISSAN, For NISSANGRT, For OPEL, For GMSA, For VAUXHAL, For PEUGEOT, For ROLLSROYCE, For SEAT, For SKODA, For SMART, For Spart, For SPRINTER, For SUBARU, For SUZUKI, For TLISUZU, For VAUXHALL, For VENUCIA， For VOLKSWAGEN, For BENTLEY, For BUGATTI, For LAMBORGHINI, For VOLVO, For YQMAZDA
Ediag Plus Other Advantage :
1. Ediag Plus Support print , you can print the diagnose result via normal printer
2. Ediag Plus supports Remote Diagnosis, if you have the problem when you diagnose , you can use this function to help you solve the problem .
3. Ediag Plus supports Online Diagnostic Report , you can share the report to the Client online .
Ediag Plus Parameter :
Support system: Android & IOS
Bluetooth: Hardware supports 5.0BLE, Bluetooth dual mode
Diagnostic interface: DB15
Working voltage: 12V
Working temperature: -10℃~50℃
Storage environment: ﹣20-60℃
Overall size: 120.5mm*65mm*29mm
Shell material: ABS+PC+TPU rubber sleeve
Lenth of obd Cable : 0.65 meter
How to Operate Ediag Plus When get ?
Step 1 : Download Ediag App from Google play / App store
Step 2 : Register & Login
Step 3 : Active Ediag Plus ( the serial number is in the back of Ediag Plus , the password is in the white sticker in manual book )
Step 4 : Go to download All softwares
Step 5 : Connect Ediag Plus to car , go to read the VIN , it will diagnose !

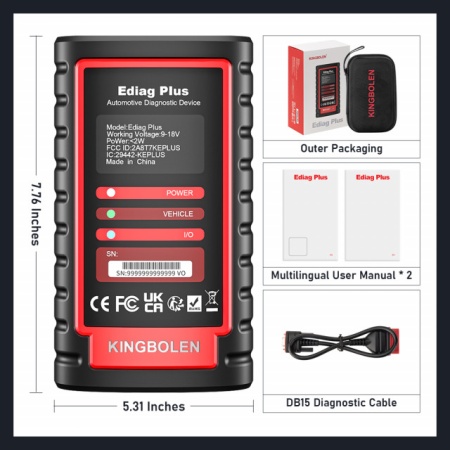

Ediag Plus Packing List :
1pc * Ediag Plus with obd2 cable
1pc * Manual book ( Multi-language )
1pc * EVA Storage Bag
