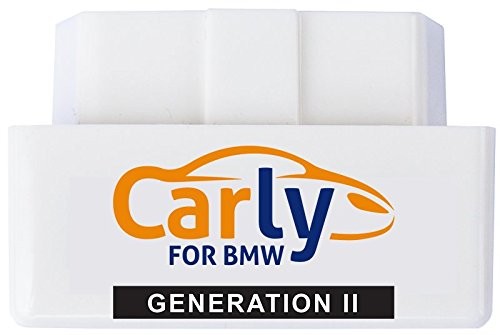

Aceasta interfata este Originala Carly, Generatia 2 cu adaptor Bluetooth utilizabila pe decive-urile Android (Samsung, LG etc).
Carly supports all BMW-models starting ca. 1994 until today. (E- and F-Models for Diagnostics and Coding)
Below you can check which models are supported by this adapter.
Support of ALL future and current functions
Adapter-Updates directly in the app for new functions
On/Off switch - now you can leave your adapter in the car
Coding for F-models (available)
iDrive codings (available)
DPF with N47/N57 models (available)
It can also be used for Porsche and Mercedes
This adapter supports all functions (esp. diagnostics and codings) for:
1 series: all models
2 series: all models
3 series: all models except E36, E46
4 series: all models
5 series: all models except E39
6 series: all models
7 series: all models except E38
X1, X3, X4, X5, X6: all models except E53
Z3, Z4: all models except E83, E85, E86
Mini (R55, R56 or newer - not R50, R52, R53)
For the models E36, E38, E39, E46, E53, E83, E85, E86 you need 20 PIN adapter (before ca. 2001)
The pro version of the app is not part of this offer.
However, a free evaluation of diagnosis with the Carly for BMW Lite app is included when you purchase the adapter.
The free Carly for BMW Lite application is available in the App Store from Google.
This adapter can be updated. As soon as adapter-updates for new app functions are available, the adapter will be updated directly in the app.
Important information regarding X3 (E83):
With a cable connection only a part of the installed ECUs can be diagnosed. For complete diagnostics of an X3 (E83) it is therefore necessary to use an OBD cable as well as a Bluetooth adapter. Coding of these models is only possible via cable. Parameters, engine and transmission diagnostics use bluetooth in most cases, while the other ECUs use the cable.
Built before 2000: Connection only with round diagnosis socket in the engine compartment (additional adapter necessary)
Built after 2000: Connection only with round diagnosis socket in the engine compartment, if available (Even if 16. Pol. OBD socket under the steering wheel is available)
Built after 2001: Connection with 16. Pol. OBD socket under the steering wheel
This adapter is the same as the Generation 2 Mercedes Android adapter.
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Pentru alte detalii consultati departamentul de suport tehnic.
