Descriere
PRET REDUS => Promotie Activa !!!
Aceasta interfata se adreseaza tuturor si sfideaza cu intrazneala prin tehnologia din prezent dorinta fiecaruia dintre noi de a face diagnoza la masina proprie sau masina prietenilor, cunostintelor cu ajutorul telefonului mobil din dotare fie ca detinem un Iphone, Ipad, Ipod sau un dispozitiv cu sistem IOS. Este atat de usor de utilizat si atat de utila in a identifica pe loc ce defectiune are masina noastra intr-un timp atat de scurt incat merita ca printr-o investitie minima s-o cumparati !
Descrierea produsului
Cu ajutorul acestui echipament puteti diagnostica toate masinile compatibile OBD2 iar conectarea la PC ori alt echipament se face prin Bluetooth. Nu mai este nevoie sa duceti calculatorul langa masina, putand face diagnoza de la distanta fara sa mai fiti incurcati de fire. De asemenea puteti monitoriza tot timpul parametri motor daca o tineti conectata la masina in timp ce conduceti si folositi un device (PDA, Telefon mobil) pe care instalati un program de diagnoza auto si comunica cu interfata prin Bluetooth.
Functioneaza cu toate masinile compatibile OBD II
- Suporta ISO 9141, KWP2000,SAE J1850 si CAN BUS.
- Prin standardele specifice OBD2 se acceseaza doar calculatorul de motor, nu si alte calculatoare (airbag,abs, etc) !
English Description:

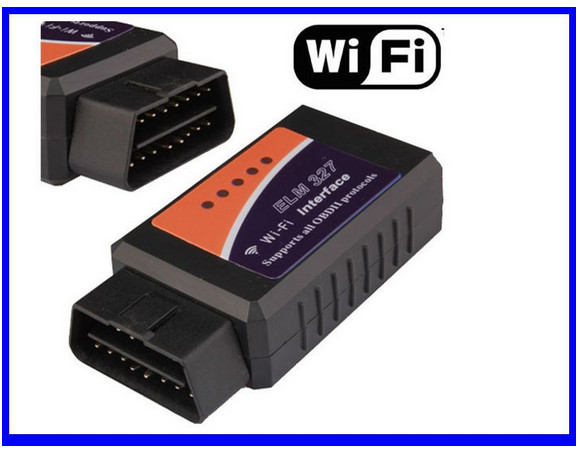

wifi 327 can be used on Iphone,Ipad and so on...
Wifi OBD VGATE Technical Specifications
SSID: CLKDevices
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Features:
CLK is capable of communicating with vehicles which adopt following protocols:
ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939
WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.
Features:
Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.
Following are some of the parameters which could be read from the vehicle.
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Package including:
1pc x WIFI327 OBD2 Scanner
1pc x CD Drive
Compatible vehicles:
MB 2001/02/03 W203 C200K (ISO)
BW M X5 2002 (ISO) Chevrolet Aveo (ISO)
Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)
Daihatsu YRV Turbo 2006 (ISO)
Fiat Tipo 2002 (ISO)
Ford New Focus 2006(CAN)
H0 nda Accord 2006 JDM (ISO)
H0 nda Accord Euro R 2004 JDM (ISO)
H0 nda City GD8 (ISO)
H0 nda Civic ES 1.6A (ISO)
H0 nda Integra Type R DC5 JDM (ISO)
H0 nda Jazz 1.4M (ISO)
Hyundai Accent 2004 (ISO)
Hyundai Getz 1.3A 2004 (ISO)
Hyundai Getz 1.6M 2004 (ISO)
Hyundai Matrix 2004 (ISO)
Hyundai Santa Fe 2.4A (ISO)
Hyundai Sonata GLS (ISO)
Hyundai Sonata 2005 (ISO)
Hyundai Tuscani FX (ISO)
Kia Carens 2005 (ISO)
Kia Magentis 2005 (ISO)
Kia Rio LS (ISO)
Kia Sorento SUV 2005 (ISO)
Lexus es300 Mazda 2 (CAN)
Mazda 5 (CAN)
Mazda 6 (CAN)
Mazda Premacy 2001 (ISO)
Mazda RX8 (CAN)
Mitsubishi Colt 2003 (ISO)
Mitsubishi Colt Plus 2005 (ISO)
Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000;RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)
Mitsubishi Lancer Evolution IX 2006 (ISO)
Mitsubishi Pajero 3.5 V6 2006 (ISO)
Ni ssan Sunny B14 (ISO)
Ni ssan Sunny VIP FB15 (ISO)
Ni ssan X-Trail 2.0L 2004 (ISO)
Ni ssan X-Trail 2.5L 2004 (ISO)
Peugeot 206 2001 –Only can show RPM
Peugeot 206 (ISO)
Peugeot 307 (ISO)
Peugeot 407 (ISO)
Renault Megane II 2005 (ISO)
Renault Kangoo 2006 (ISO)
Subaru Impreza 1.6TS 2002 (ISO)
Subaru Impreza WRX 2005 (ISO)
T0 y0 ta Camry 2.0A 2004 (ISO)
T0 y0 ta Camry 2.4A 2005 (ISO)
T0 y0 ta Corolla Altis 1.6A 2005 (ISO)
T0 y0 ta Corolla GLXi G8 1999 (ISO)
T0 y0 ta Corolla G9 2002 (ISO)
T0 y0 ta Vios 2004 (ISO)
Not available veichles:
Mazda 323 Protege 2003 (OBD-I)
Mitsubishi Lancer 1.6M 2006
Ni ssan Sunny (N16)
Ni ssan Cefiro (Teana) 2005
Ni ssan sentra 1.8 2000/2005
Ni ssan Cefiro (Teana) 2005
Proton Perdana V6
Subaru Legacy GT 2005
T0 y0 ta camry 2002
T0 y0 ta Wish JDM (Missing Pin 5 in DLC)
T0 y0 ta IST JDM (Missing Pin 5 in DLC)
T0 y0 ta altis 1.8 2004
Peugeot 206 2000
Suzuki Jimny 1.3 2000
Diesel engine
